HIKVISION DS-7732NI-I4 Quick Start Guide

Network Video Recorder Quick Start Guide
19
Chapter 2 Installation and Connections
2.1 Installation
During installation of the NVR:
 Use brackets for rack mounting.
 Ensure ample room for audio and video cables.
 When routing cables, ensure that the bend radius of the cables are no less than five times than
its diameter.
 Connect the alarm cable.
 Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
 Ensure the NVR is grounded.
 Environmental temperature should be within the range of -10 to +55º C (+14 to +131º F).
 Environmental humidity should be within the range of 10% to 90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
2.2.1 DS-9600NI Series
Purpose:
The following section introduces the HDD installation for the DS-9600NI-I8 and DS-9600NI-I16
series NVR. Take the example of DS-9616NI-I16 series to describe installation steps.
Step 1 Fasten the hard disk mounting handle to the hard disk with screws.

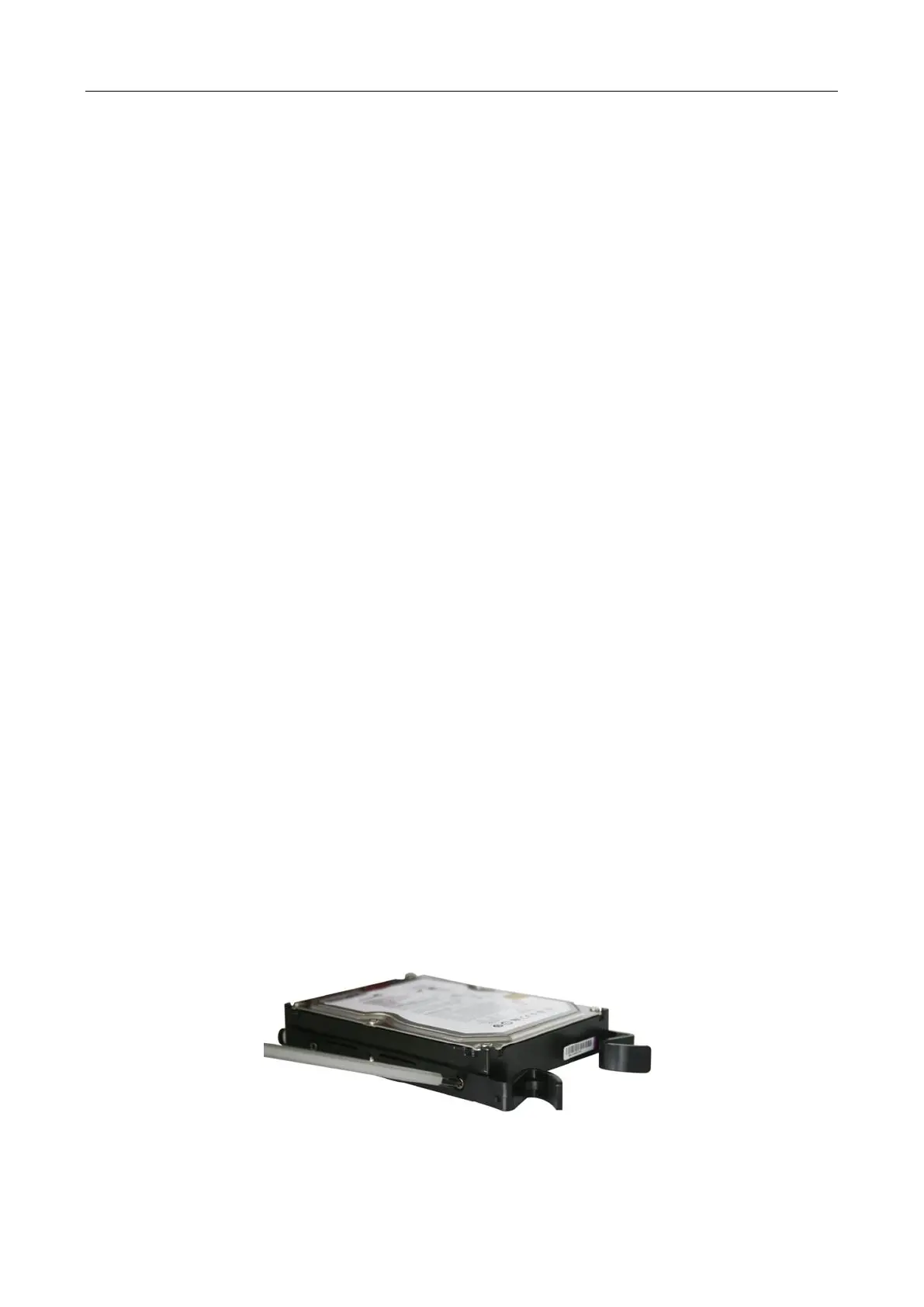

Figure 2-1 Fasten Hard Disk

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
