Network Video Recorder User Manual
35

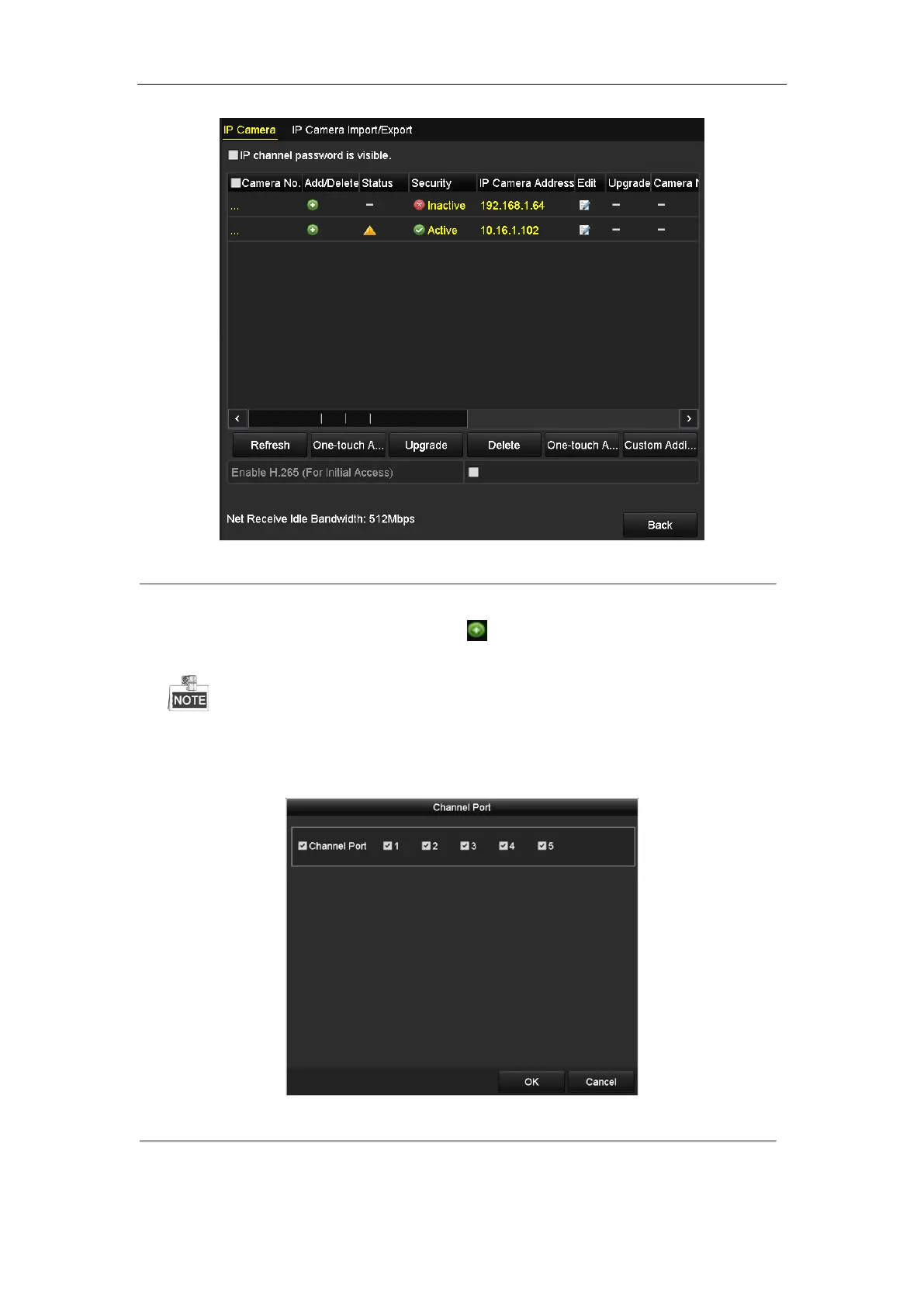

Figure 2. 28 Adding IP Camera Interface
2. The online cameras with same network segment will be detected and displayed in the camera list.
3. Select the IP camera from the list and click the button to add the camera. Or you can click the
One-touch Adding button to add all cameras (with the same login password) from the list.
Make sure the camera to add has already been activated.
4. (For the encoders with multiple channels only) check the Channel Port checkbox in the pop-up window, as
shown in the following figure, and click OK to add multiple channels.
Figure 2. 29 Selecting Multiple Channels
OPTION 3:
