HIKVISION DS-96128NI-I16 User Manual

Network Video Recorder User Manual
68

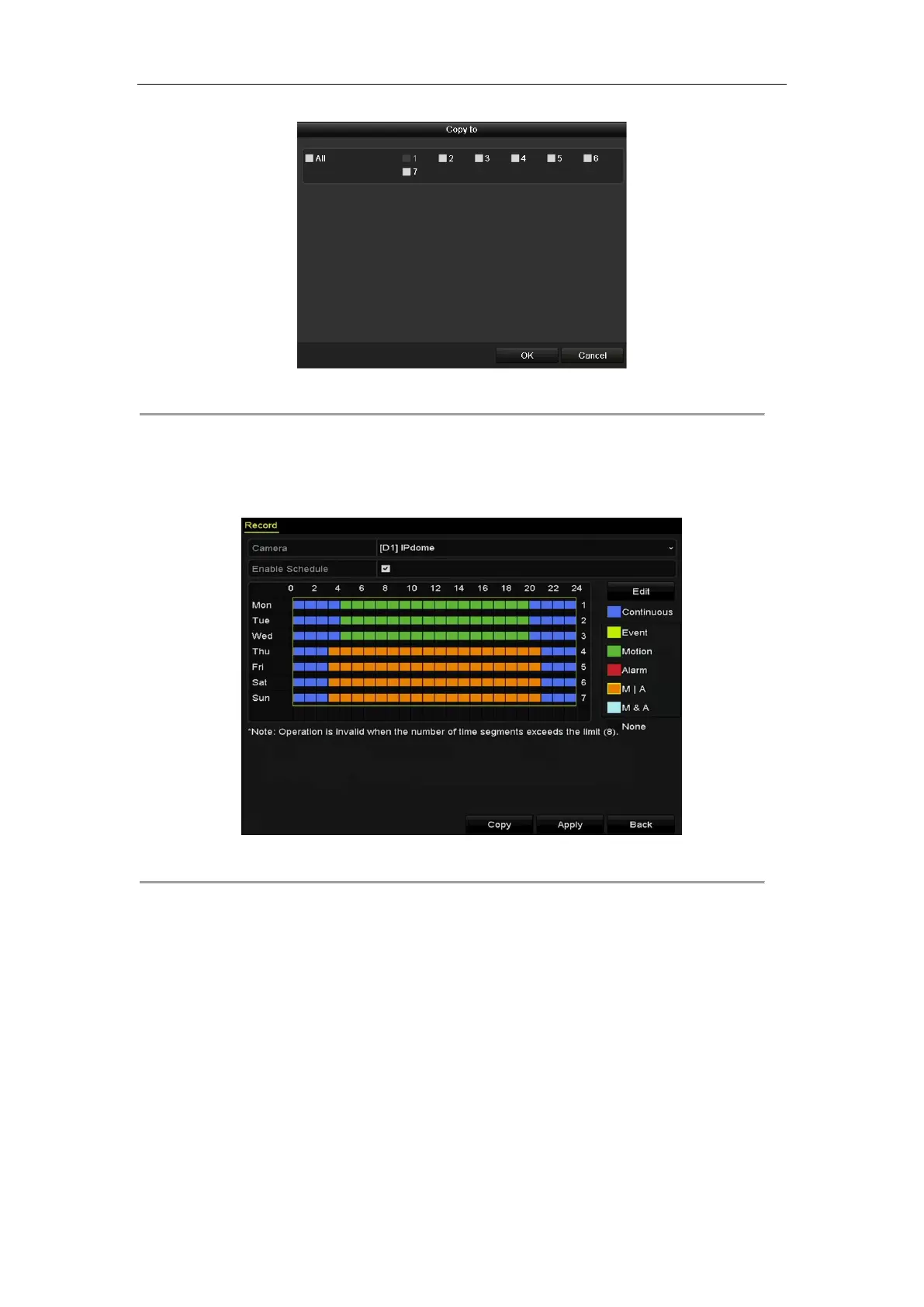

Figure 5. 9 Copy Schedule to Other Days
V. Click OK to save setting and back to upper level menu.
VI. Click Apply in the Record Schedule interface to save the settings.
Draw the schedule:
I. Click on the color icons, you can choose the schedule type as continuous or event.
Figure 5. 10 Draw the Schedule
II. Click the Apply button to validate the settings.
3. (Optional) If the settings can also be used to other channels, click Copy, and then choose the channel to
which you want to copy.
4. Click Apply to save the settings.

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
