Network Video Recorder User Manual
104

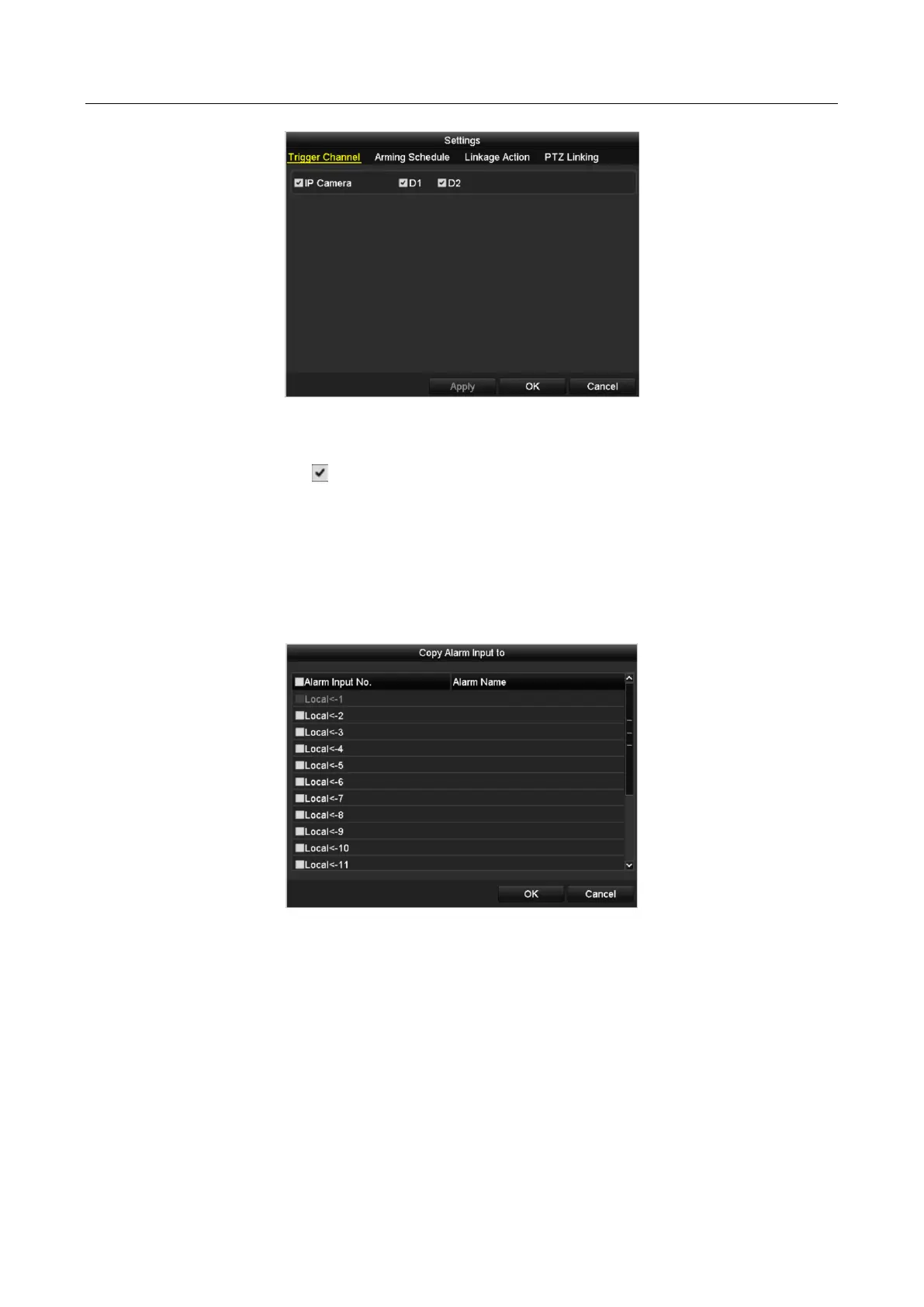

Figure 5-16 Alarm Settings
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input
number.
Figure 5-17 Copy Alarm Input
Step 3 Edit the Alarm triggered record in the Record/Capture Schedule setting interface. For the
detailed information of schedule configuration, see Chapter Configuring Recording and
Capture Schedule.

Table of Contents

Other manuals for HIKVISION DS-9664NI-I8

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-9664NI-I8 and is the answer not in the manual?

HIKVISION DS-9664NI-I8 Specifications

General IconGeneral
Product colorBlack
Rack capacity2U
Rack mountingYes
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)30 W
Display modesLive view
Input bandwidth320 Mbit/s
Output bandwidth256 Mbit/s
Maximum frame rate60 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels64 channels
Alarm output channels4
Supported resolutions3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes1080p, 2160p
Video formats supportedH.264, H.265, MPEG4
Still image resolution(s)3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity48 TB
Number of HDDs installed0
Number of HDDs supported8
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth445 mm
Width470 mm
Height90 mm
Weight10000 g
