Network Video Recorder User Manual
86
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the button to show the general settings of the PTZ control.

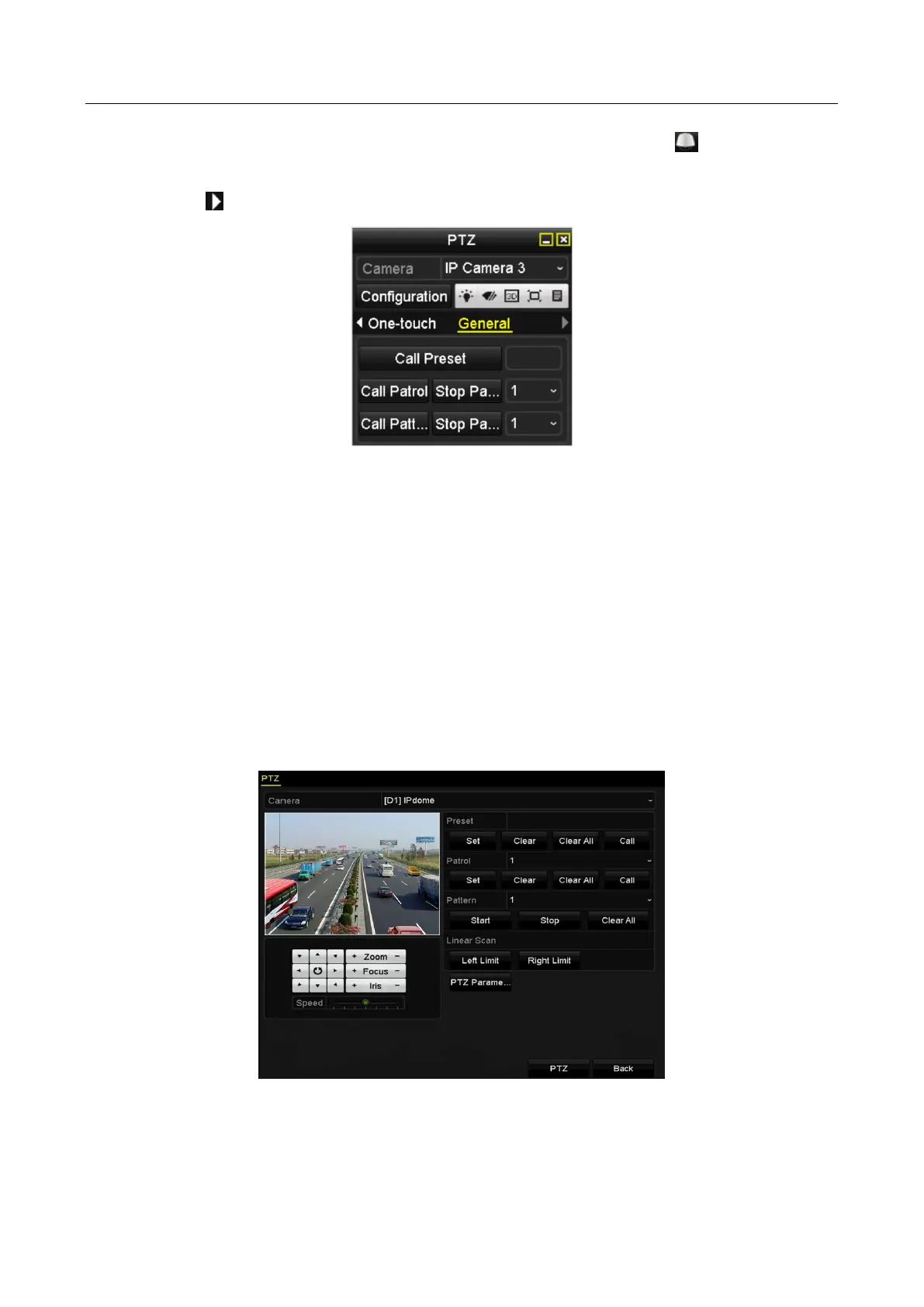

Figure 4-7 PTZ Panel - General
Step 3 Select a patrol in the dropdown list and click the Call Patrol button to call it.
Step 4 You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Step 1 Enter the PTZ Control interface.
Menu > Camera > PTZ
Figure 4-8 PTZ Settings
Step 2 Choose pattern number in the dropdown list.

Table of Contents

Other manuals for HIKVISION DS-9664NI-I8

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-9664NI-I8 and is the answer not in the manual?

HIKVISION DS-9664NI-I8 Specifications

General IconGeneral
Product colorBlack
Rack capacity2U
Rack mountingYes
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)30 W
Display modesLive view
Input bandwidth320 Mbit/s
Output bandwidth256 Mbit/s
Maximum frame rate60 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels64 channels
Alarm output channels4
Supported resolutions3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes1080p, 2160p
Video formats supportedH.264, H.265, MPEG4
Still image resolution(s)3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity48 TB
Number of HDDs installed0
Number of HDDs supported8
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth445 mm
Width470 mm
Height90 mm
Weight10000 g
