HIKVISION DS-9664NI-I8 User Manual

Network Video Recorder User Manual
256
Chapter 17 Others
17.1 Configuring RS-232 Serial Port
The RS-232 serial port is not supported by DS-7600NI series NVR.
Purpose:
The RS-232 port can be used in two ways:
 Parameters Configuration: Connect a PC to the NVR through the PC serial port. Device
parameters can be configured by using software such as HyperTerminal. The serial port
parameters must be the same as the NVR’s when connecting with the PC serial port.
 Transparent Channel: Connect a serial device directly to the NVR. The serial device will be
controlled remotely by the PC through the network and the protocol of the serial device.
Step 1 Enter the RS-232 Settings interface.
Menu >Configuration> RS-232

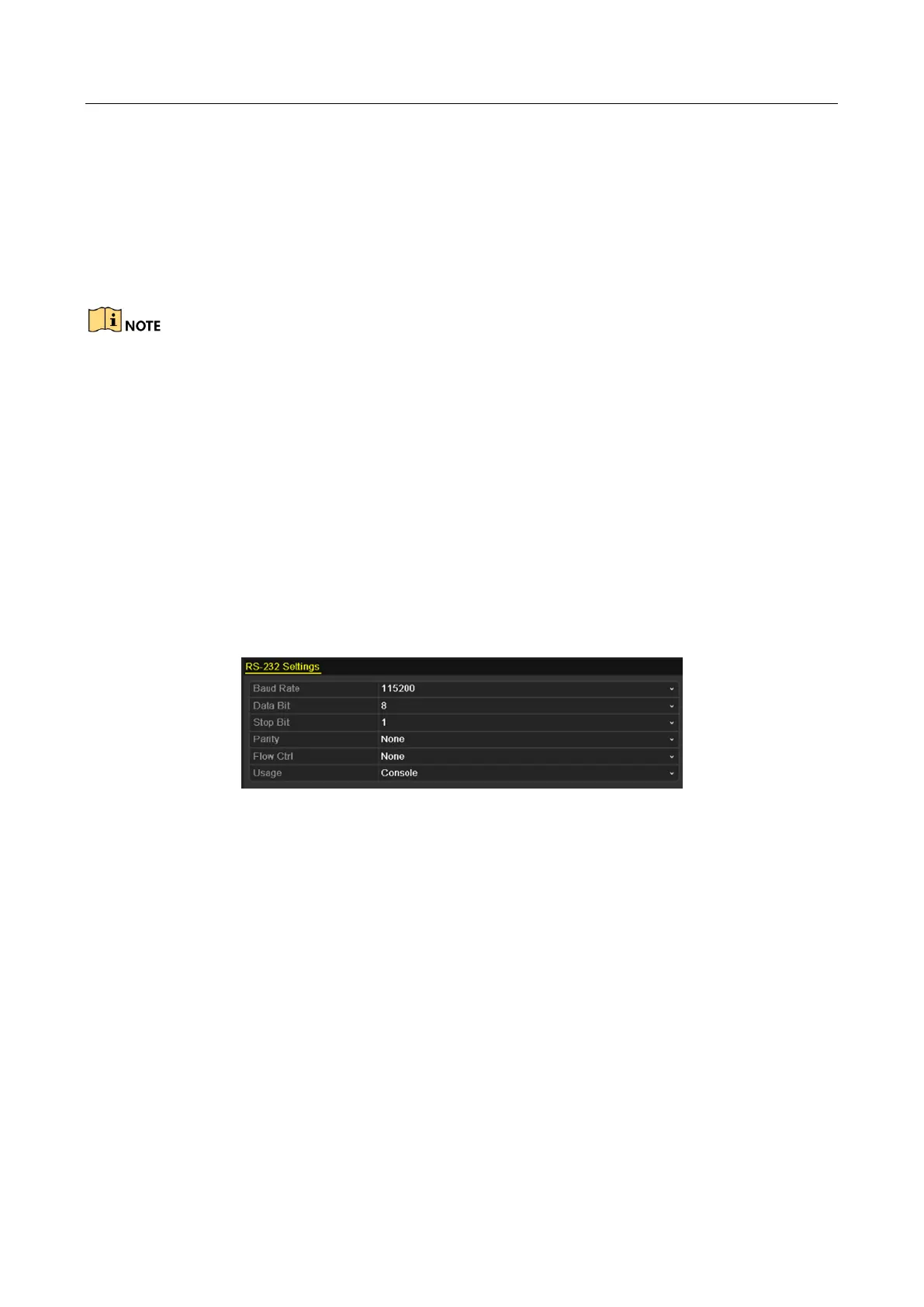

Figure 17-1 RS-232 Settings Interface
Step 2 Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and
usage.
Step 3 Click the Apply button to save the settings.

HIKVISION DS-9664NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
