Network Video Recorder User Manual
139

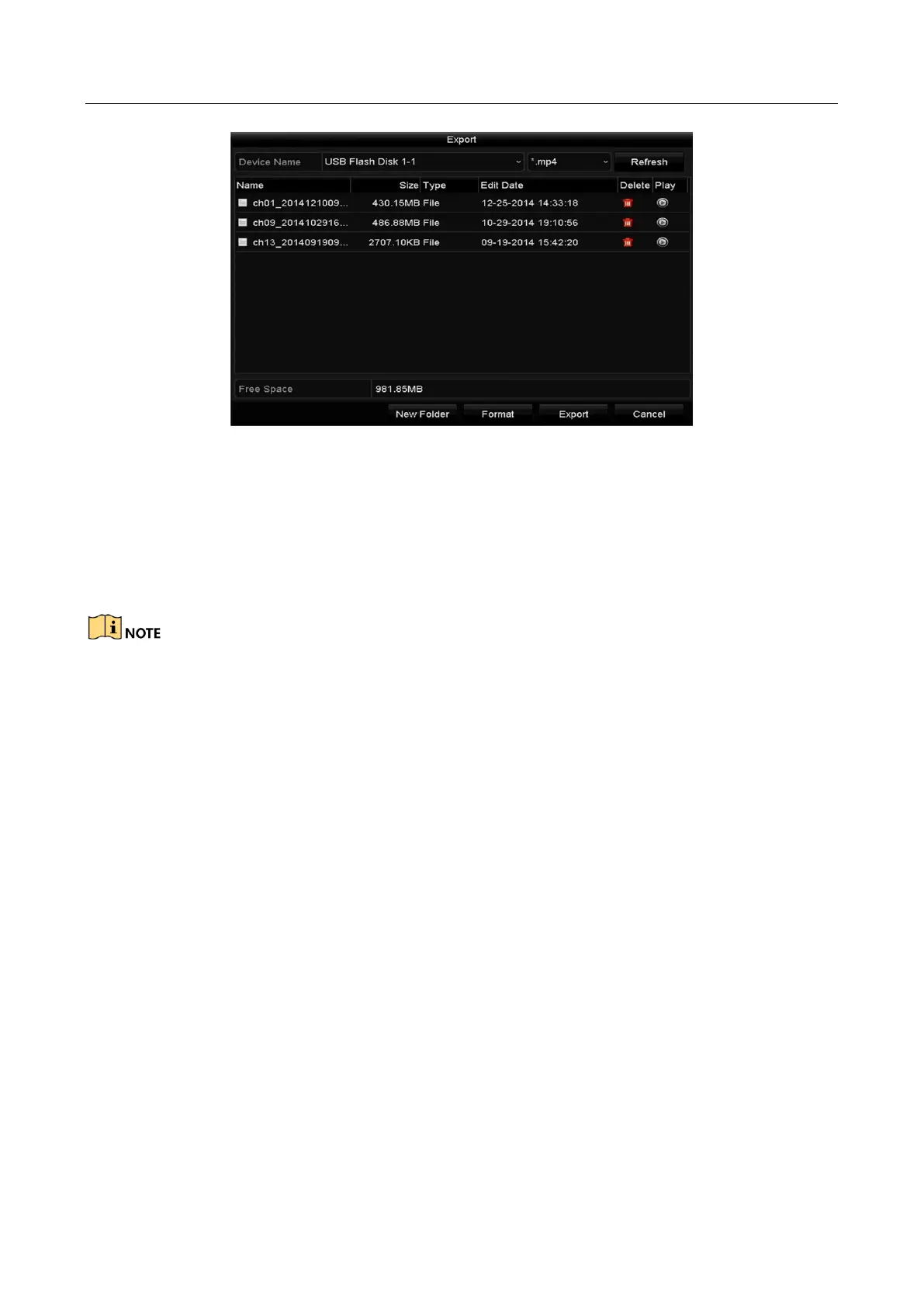

Figure 7-4 Checkup of Quick Export Result Using USB1-1
7.1.2 Backing up by Normal Video/Picture Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs,
USB writer), SATA writer and e-SATA HDD.
The eSATA HDD is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Backup using USB flash drives and USB HDDs
Step 1 Enter Export interface.
Menu>Export>Normal/Picture
Step 2 Select the cameras to search.
Step 3 Set search condition and click Search button to enter the search result interface. The
matched video files or pictures are displayed in Chart or List display mode.

HIKVISION DS-9664NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
