HIKVISION DS-9664NI-I8 User Manual

Network Video Recorder User Manual
214

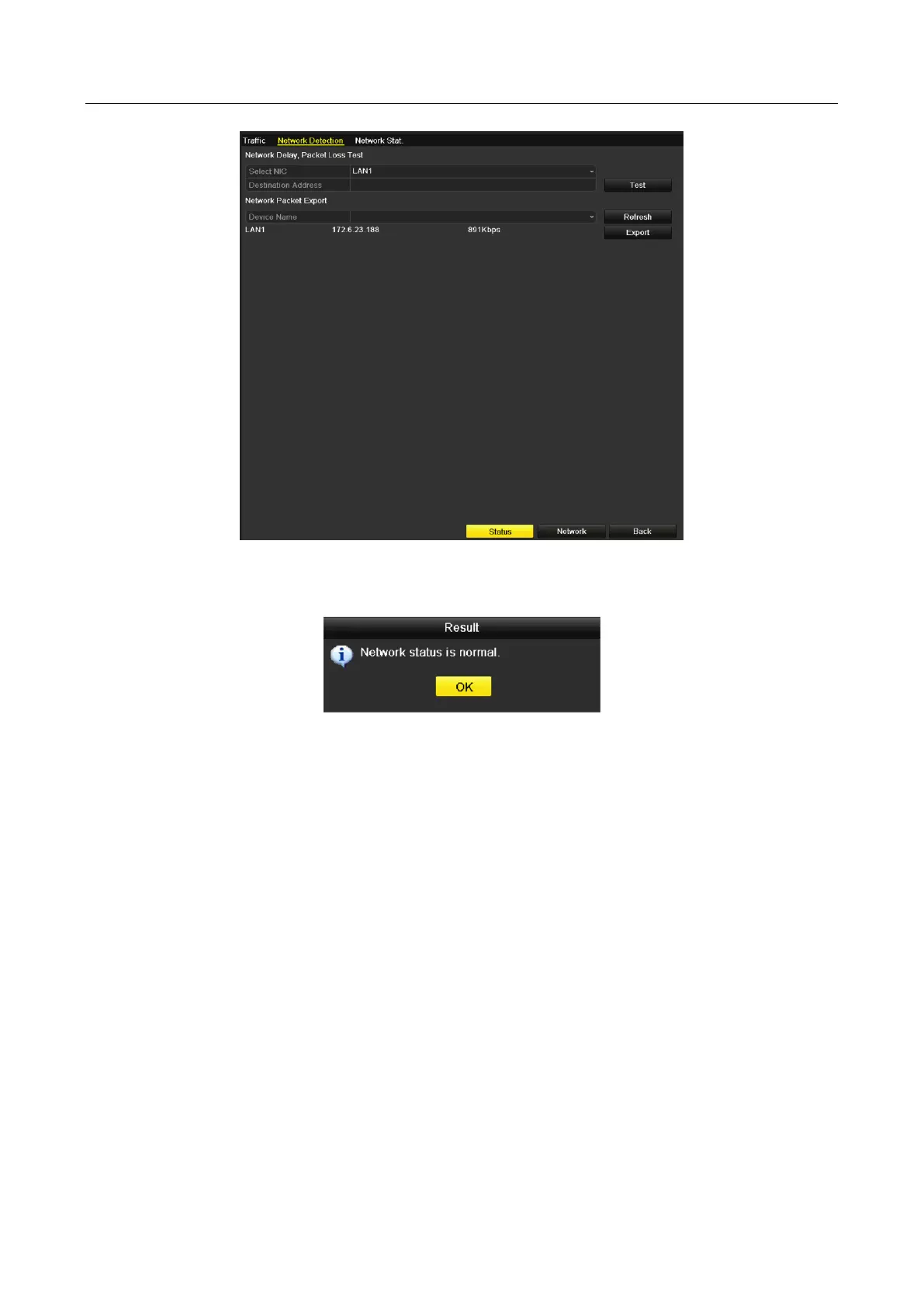

Figure 12-30 Network Status Checking
If the network is normal the following message box pops out.
Figure 12-31 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click
Network button to show the quick setting interface of the network parameters.
12.4.4 Checking Network Statistics
Purpose:
You can check the network status to obtain the real-time information of NVR.
Step 1 Enter the Network Detection interface.
Menu>Maintenance>Net Detect
Step 2 Choose the Network Stat. tab.

HIKVISION DS-9664NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
