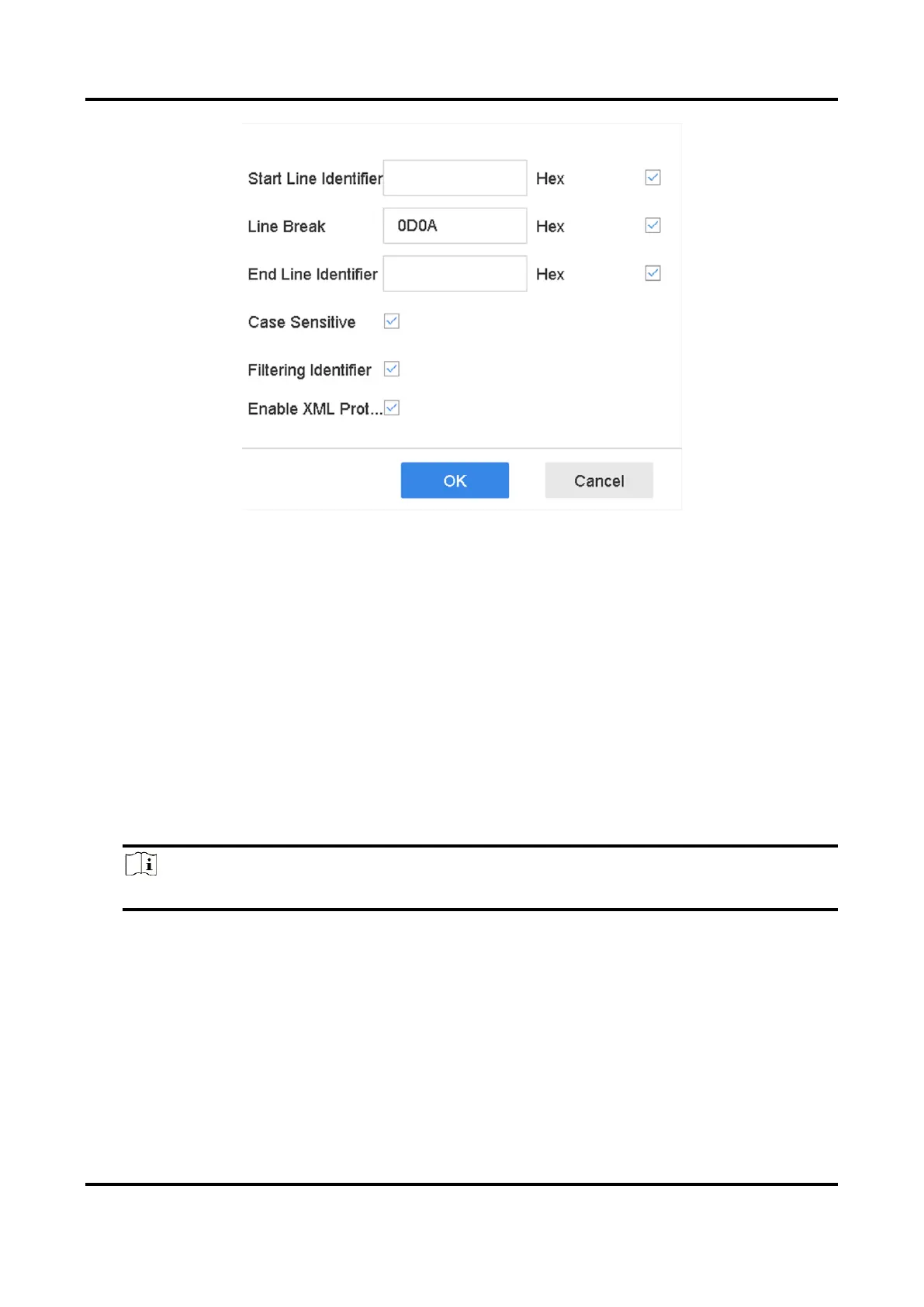

Figure 14-2 Universal Protocol Settings
EPSON
The fixed start and end line tag are used for EPSON protocol.
AVE
The fixed start and end line tag are used for AVE protocol. Serial port and virtual serial port
connection types are supported.
Click Custom to configure the AVE settings. Select Rule as VSI-ADD or VNET . Set the address
bit of the POS message to send. Click OK to save the settings.
NUCLEUS
Click the Custom to configure the NUCLEUS settings.
Enter the employee No., shift No., and the terminal No. in the field. The matching message
sent from the POS device will be used as the valid POS data.
Note
The NUCLEUS protocol must be used in the RS-232 connection communication.
6. Select Connection Mode and click Parameters to configure the parameters for each
connection mode.
TCP Connection
When using TCP connection, the port must be set from 1 to 65535, and the port for each POS
machine must be unique.
Set the Allowed Remote IP Address of the device sending the POS message.
UDP Connection
When using UDP connection, the port must be set from 1 to 65535, and the port for each POS

HIKVISION DS-9664NI-M8 Specifications

General

Video codecs	H.265+/H.265/H.264+/H.264
Input bandwidth	400 Mbit/s
Maximum resolution	7680 x 4320 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	9
Supported resolutions	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Number of simultaneously playbacked channels	16 channels
Certification	CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black
Rack capacity	2U
Rack mounting	Yes
Brand compatibility	Hikvision Digital Technology
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	50 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	-
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum storage capacity	14 TB
eSATA ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Internal SATA ports quantity	8

Weight and Dimensions

Depth	465 mm
Width	445 mm
Height	93 mm
Weight	10000 g
