HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
83

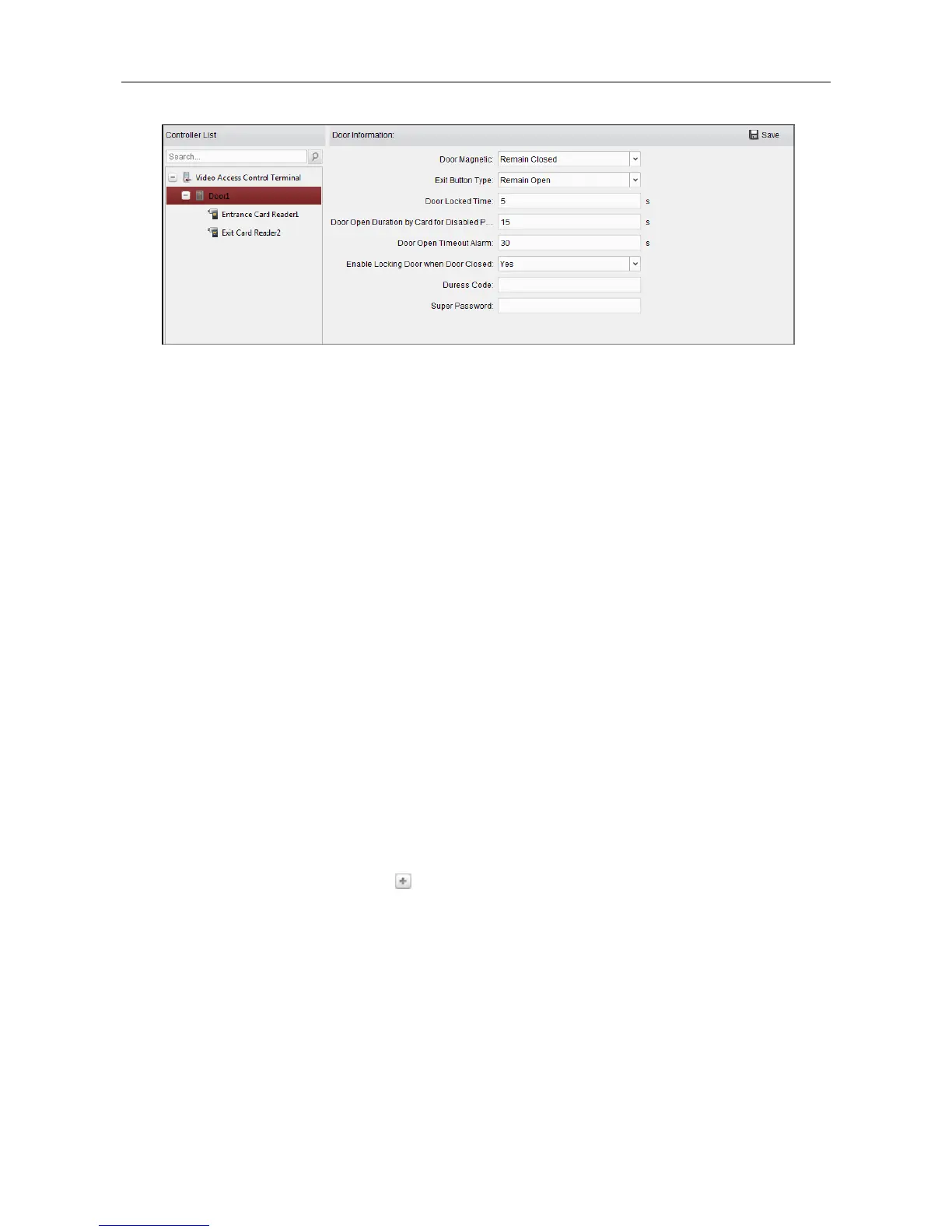

2. You can editing the following parameters:
 Door Magnetic: The Door Magnetic is in the status of Remain Closed (excluding special
conditions).
 Exit Button Type: The Exit Button Type is in the status of Remain Open (excluding special
conditions).
 Door Locked Time: After swiping the normal card and relay action, the timer for locking
the door starts working.
 Door Open Duration by Card for Disabled Person: The door magnetic can be enabled with
appropriate delay after disabled person swipes the card.
 Door Open Timeout Alarm: The alarm can be triggered if the door has not been close
 Enable Locking Door when Door Closed: The door can be locked once it is closed even if
the Door Locked Time is not reached.
 Duress Code: The door can open by inputting the duress code when there is duress. At the
same time, the client can report the duress event.
 Super Password: The specific person can open the door by inputting the super password.
Notes:
 The duress code and Super password should be different.
 The duress code and the super password should be different from the authentication
password.
 The duress code and super password should contain 4 to 8 numerics.
3. Click Save button to save parameters.
Card Reader Parameters
Steps:
1. In the device list on the left, click to expand the door, select the card reader name and you
can edit the card reader parameters on the right.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
