HIKVISION DS-KD-KK

No. Descripon
9
Module-Connecng Interface
(output)
10 Terminals
Note
●
Nametag area supports insert customized name card. The
suggested card size is: 58 (L) x 11.7(W) mm.
●
The module connecng interface is used to connect other
funcon module, such as nametag module, keypad module,
card reader module, etc. All these modules are known as sub
module.
Nametag Module

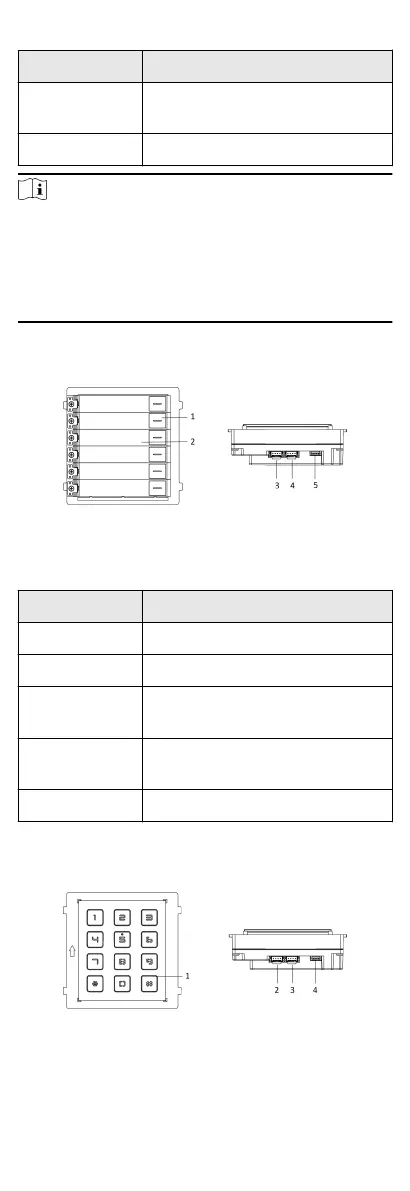

Figure 2-3 Nametag Module Appearance
Table 2-3 Appearance Descripon
No. Descripon
1 Call Buon
2 Nametag
3
Module-Connecng Interface
(output)
4
Module-Connecng Interface
(input)
5 Debugging Port
Keypad Module
Figure 2-4 Keypad Module Appearance
3
