HIKVISION DS-KD-KK

Table 2-10 Descripon
No. Descripon
1 Touch-Display Area
2 TF Card Slot
3
Module-connecng
Interface (output)
4
Module-connecng
Interface (input)
5 Video & Audio Terminal
6 Debugging Port
Note
The debugging port is used for debugging only.
3 Terminal and Wiring
3.1 Terminal Descripon
Main Unit Terminals

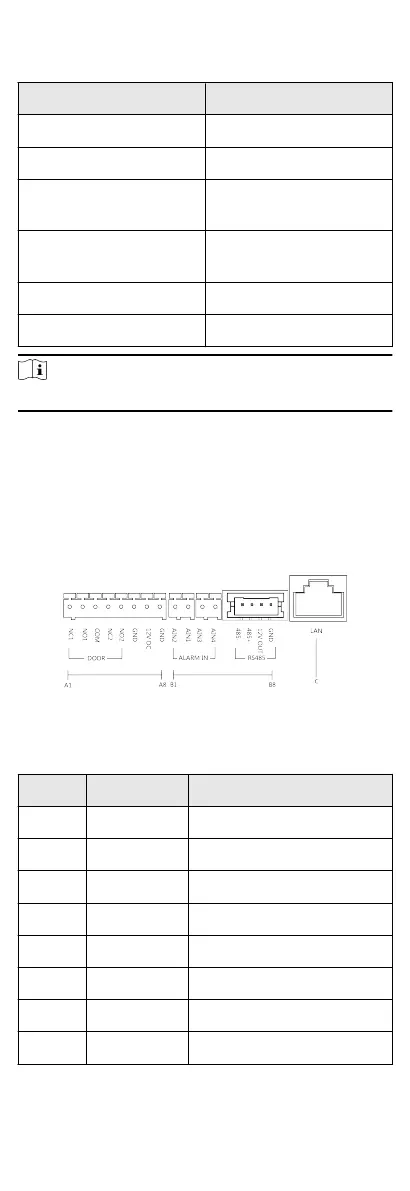

Figure 3-1 Main Unit Terminals
Table 3-1 Descripons of Terminals and Interfaces
No. Interface Descripon
A1 NC1 Door Lock Relay Output (NC)
A2 NO1 Door Lock Relay Output (NO)
A3 COM Common Interface
A4 NC2 Door Lock Relay Output (NC)
A5 NO2 Door Lock Relay Output (NO)
A6 GND Grounding
A7 12 VDC Power Input
A8 GND Grounding
