HIKVISION DS-KD-KK User Manual

1) Connect Cable 1 and one end of Cable 2 to the
corresponding interfaces of the Main Unit, then place the
Main Unit into the upper grid of the le gang box.
2) Connect the other end of Cable 2 to the input interface of
Sub Module 1. Connect one end of Cable 3 to the output
interface of Sub Module 1 and insert it into the middle grid
of the
le gang box.
3) Finish the wiring and
inserng according to the cable
number and the
posion shown as below.

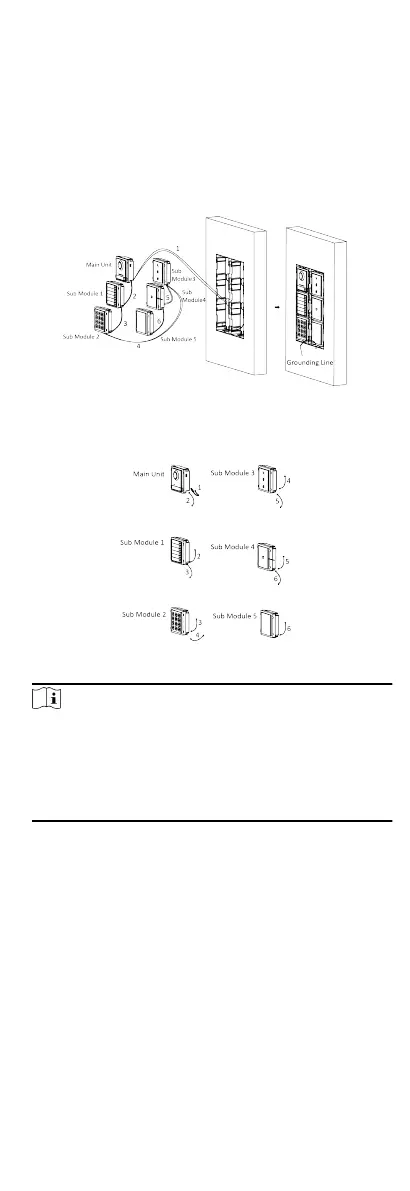

Figure 4-47 Install Mounng Frame
The cables connect to each module shown as below.
Figure 4-48 Cables Connecon
Note
●
Cable 2,3,5 and 6 are the module-connecng lines (190 mm)
in the package.
●
Cable 4 is the module-connecng line (400 mm) in the
package.
●
Main unit must be put in the top grid.
10. Pull the grounding line out and xed its two end to the screw
on the cover.
33

HIKVISION DS-KD-KK Specifications

General

Product color	Black, Grey, White
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	438 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
Sustainability certificates	RoHS, WEEE, REACH
DC input voltage	12 V

Weight and Dimensions

Depth	33.7 mm
Width	98.2 mm
Height	100.2 mm
Weight	190 g
