HIKVISION DS-KD8003-IME1 - Wiring Description; Door Lock Wiring

Video Intercom Module Door Station·Quick Start Guide
8
2.2 Wiring Description
2.2.3 Door Lock Wiring

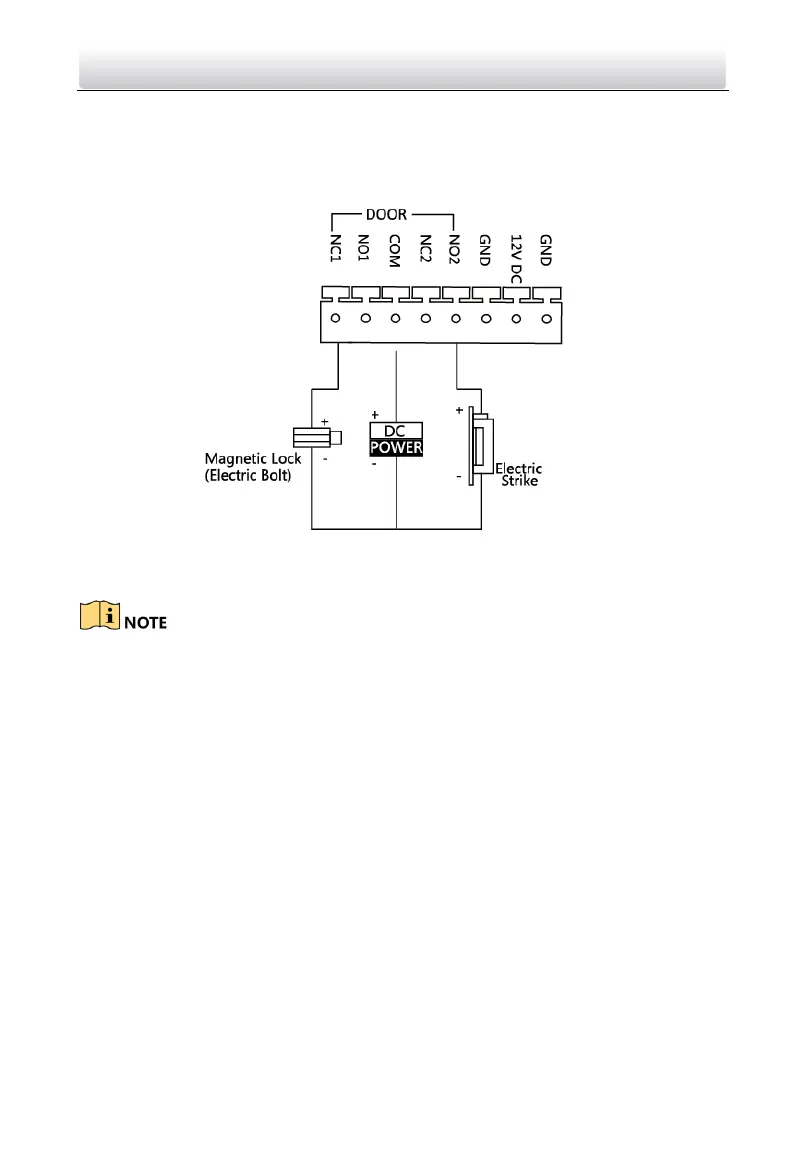

Figure 2-3 Door Lock Wiring
 Terminal NC1/COM is set as default for accessing magnetic lock/electric bolt; terminal
NO2/COM is set as default for accessing electric strike.
 Lock should be powered by itself. Max. voltage and current for relay is 30V and 1A.
