HIKVISION DS-KD8003-IME1 - Door Magnetic Wiring; Exit Button Wiring

Video Intercom Module Door Station·Quick Start Guide
9

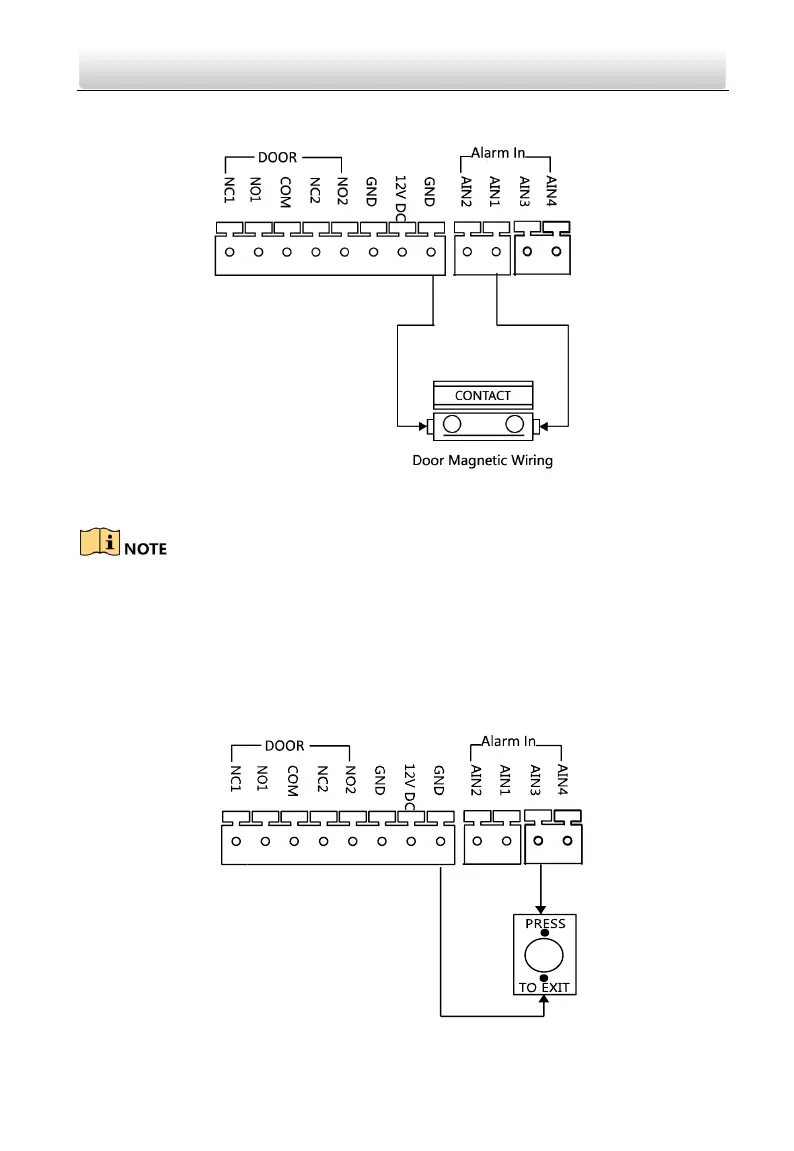

2.2.4 Door Magnetic Wiring
Figure 2-4 Door Magnetic Wiring
AIN1 and AIN2 are defaulted to connect door magnetic. Door magnetic connected to
AIN1 detects status of the lock that connected to NC1/NO1; Door magnetic connected
to AIN2 detects the status of the lock connected to NC2/NO2.
2.2.5 Exit Button Wiring
Figure 2-5 Exit Button Wiring
