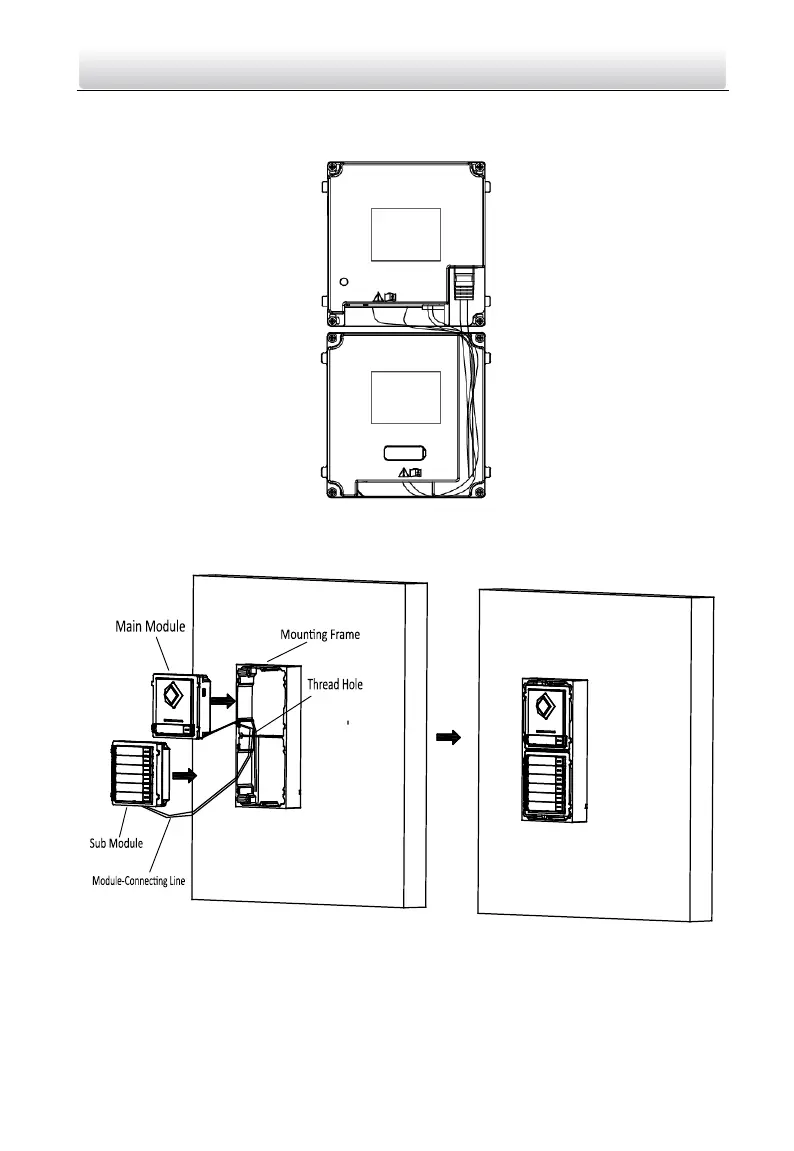

Organize the line with cable tie in the package. The suggested line connection picture
as below.
Figure 3-16 Line Connection Effect Picture
7. Insert the modules in to the frame after wiring. Main unit must be placed in the top
grid.
Figure 3-17 Insert the Modules
8. Use the hexagon wrench in the package fix the cover onto the frame.
