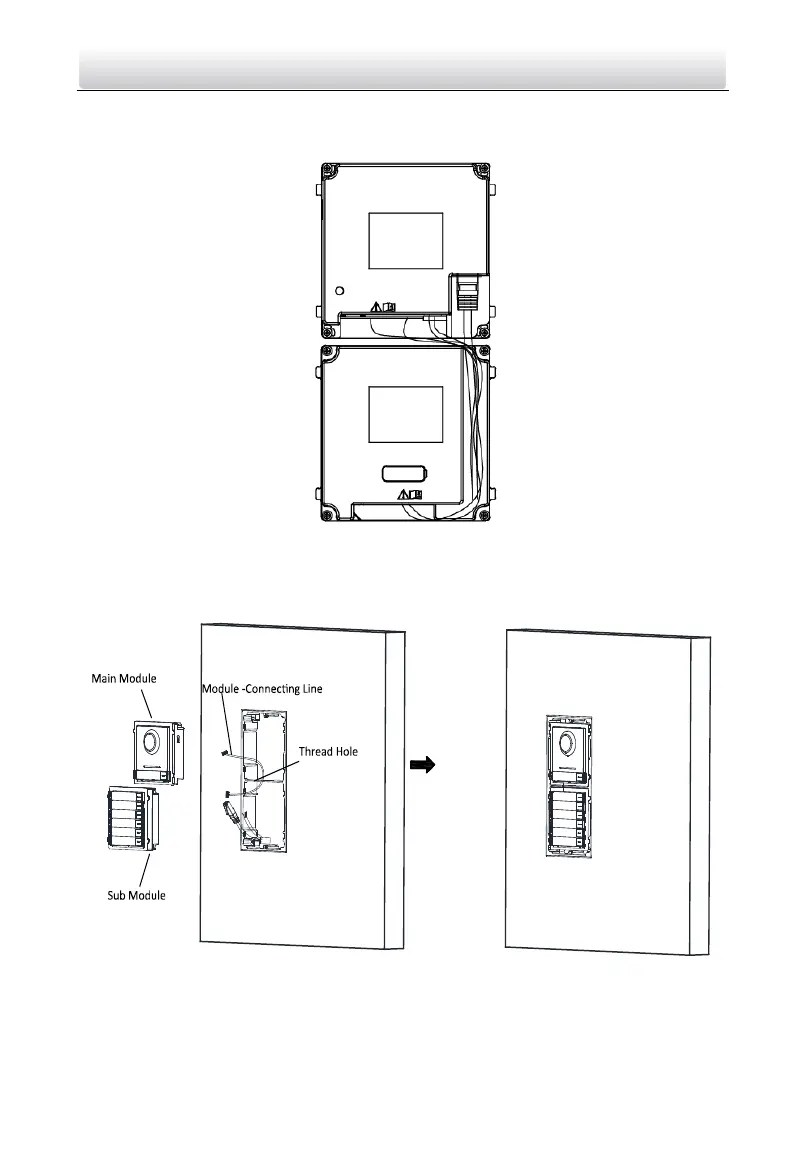

Organize the line with cable tie in the package. The suggested line connection picture
as below.
Figure 3-23 Line Connection Effect Picture
10. Insert the modules in to the frame after wiring. Main unit must be placed in the top
grid.
Figure 3-24 Insert the Modules
11. Use the hexagon wrench in the package fix the cover onto the frame.
