Video Intercom Door Station·User Manual
18

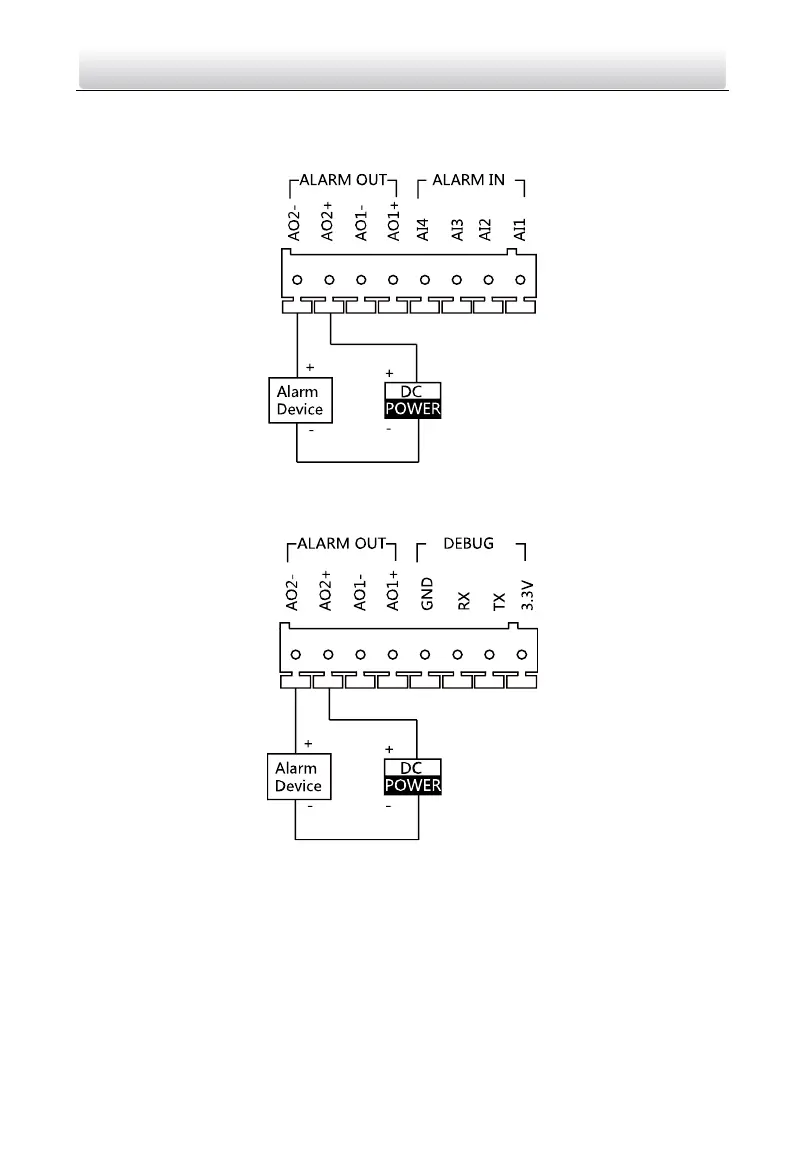

4.2.7 Alarm Device Output Wiring
Alarm Device Output Wiring for DS-KD8102-V/DS-KD8002-VM
Figure 4-15 Alarm Device Output Wiring for DS-KD8102-V/DS-KD8002-VM
Alarm Device Output Wiring for DS-KD3002-VM
Figure 4-16 Alarm Device Output Wiring for DS-KD3002-VM
