HIKVISION DS-MH6171I-A

Network Portable IR Speed Dome Quick Start Guide
8
1
3
4
2
5
7
8
9
10
11
12
13
14
6

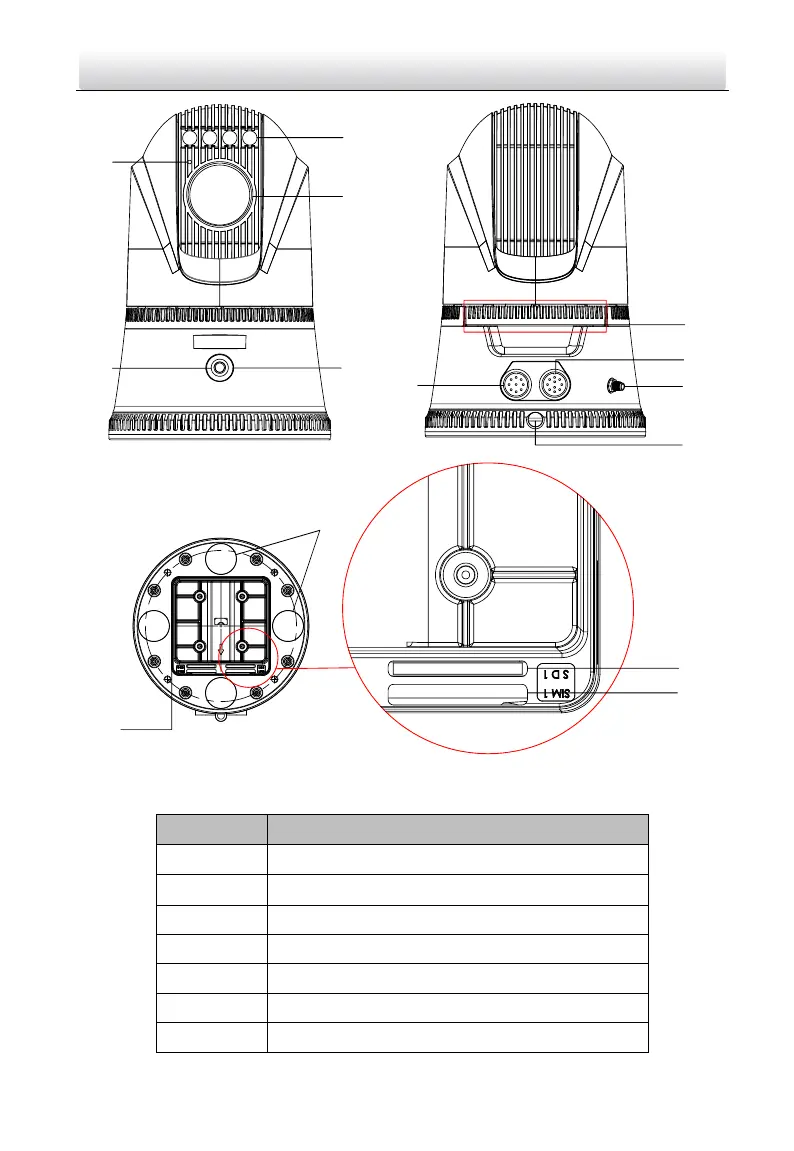

Figure 1-1 Speed Dome Overview
Table 1-1 Overview Description
No.
Description
1
IR LED
2
Light sensor
3
Lens
4
ON/OFF switch
5
LED indicator
6
Speed dome handle
7
9-PIN aviation plug (connectable to 5 VDC power
