Network Portable IR Speed Dome Quick Start Guide

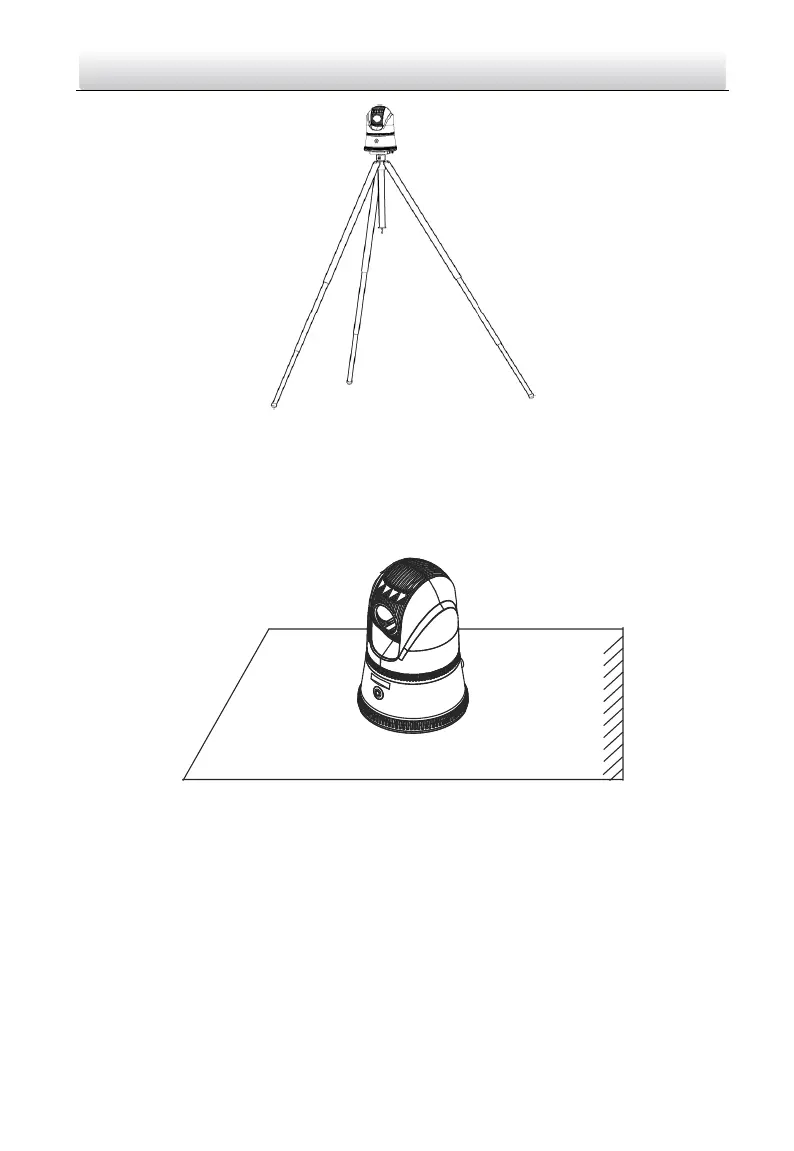

Figure 2-14 Install Speed Dome
2.3.2 Vehicle Roof Mounting
The speed dome can be used in the mobile environment in which the vehicle speed
does not exceed 60 km/h (37.3 mile/h).
1. Adsorb the four magnets on the base of the speed dome to the vehicle roof.
Figure 2-15 Vehicle Roof Mounting
Note:
The vehicle roof cannot be too arc. Make sure the four magnets can be adsorbed on the
vehicle roof completely.
2. Hang the safety rope by hooking one end on the safety rope ring of speed dome
and the other end on the bracket of the vehicle.
2.3.3 Wall Mounting
Before you start:
Make sure the wall is thick enough to install expansion screws.
To Next Page
