HIKVISION DS-PHA64-W4M User Manual

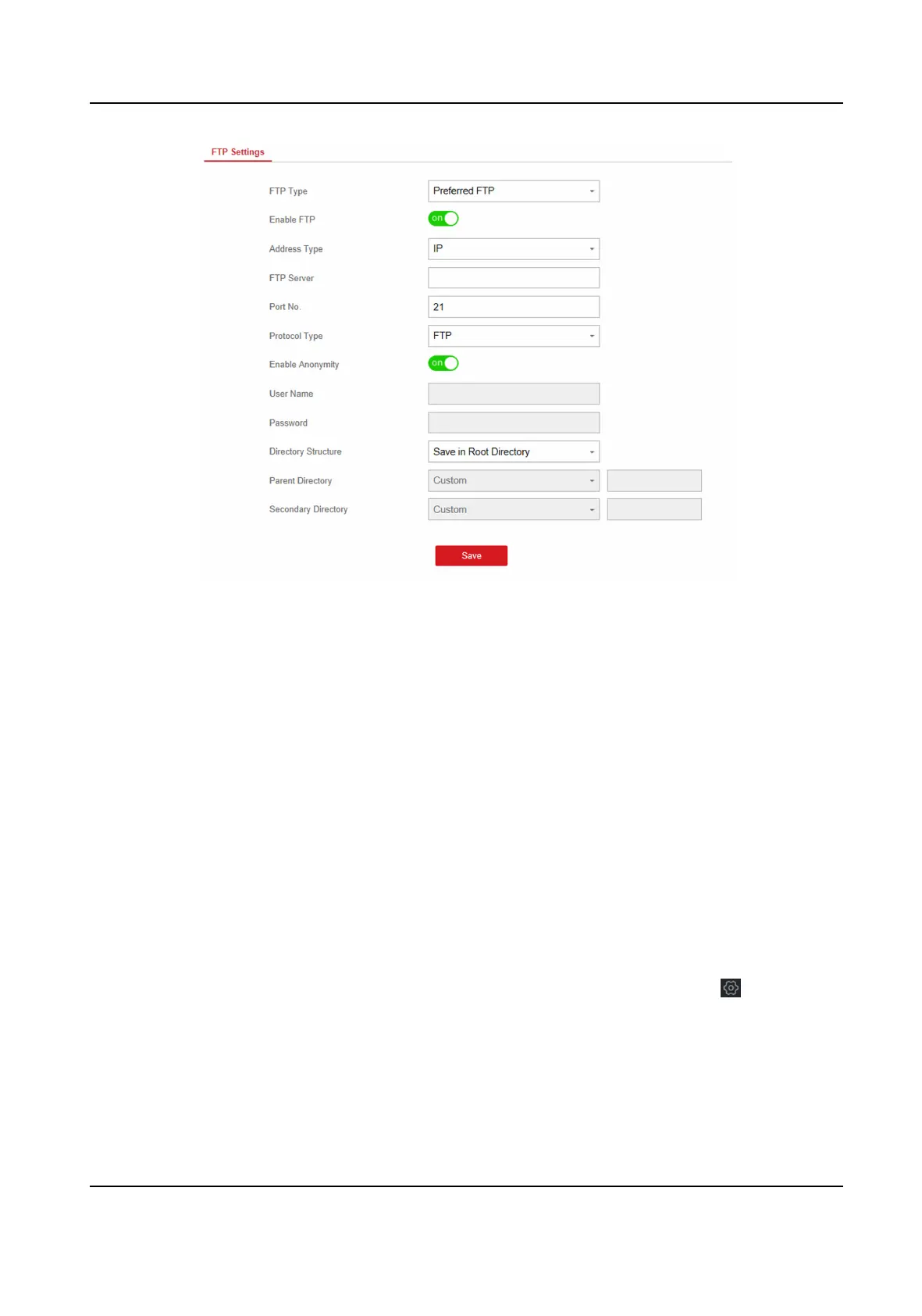

Figure 4-17 FTP Sengs
3. Select FTP Type.
4. Drag the slider to enable FTP.
5. Select address type as Domain Name or IP.
6. Enter the domain name or FTP server.
7. Enter port number, user name and password.
8.
Oponal: Drag the slider to enable anonymity.
9. Set Directory Structure as the saving path of snapshots in the FTP server.
10. Click Save.
4.2.2 Device Management
Zone
You can set the zone parameters on the zone page.
In the client soware, select the device on the Device Management page and click , or enter
the device IP address in the address bar of the web browser and log in.
Click
Conguraon → Device Management → Zone to enter the Zone page.
Hybrid Security Control Panel User Manual
30

HIKVISION DS-PHA64-W4M Specifications

General

Brand	HIKVISION
Model	DS-PHA64-W4M
Category	Control Panel
Language	English
