HIKVISION HWN-2104H-4P User Manual

Network Video Recorder User Manual
201

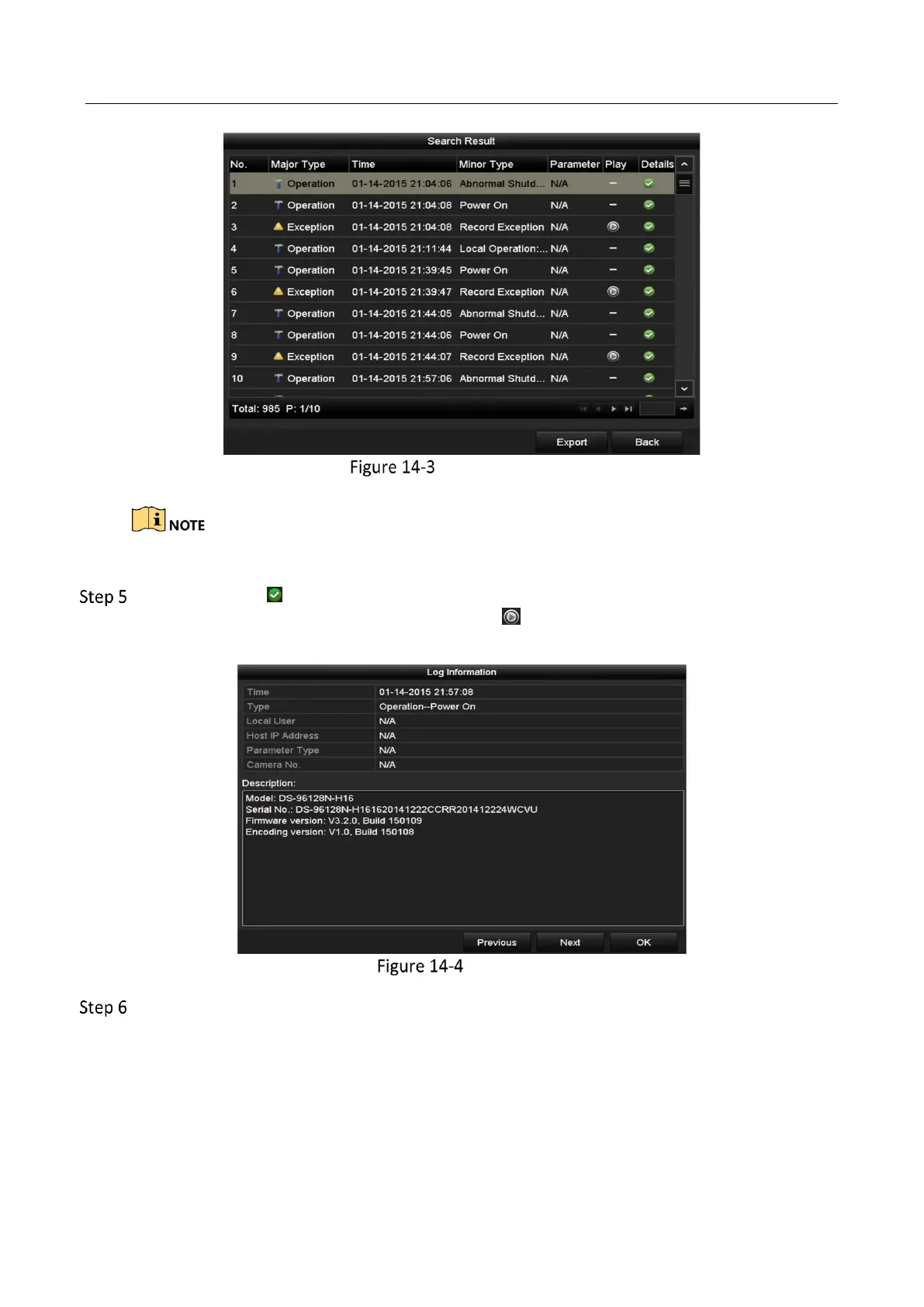

Log Search Results
Up to 2000 log files can be displayed each time.
You can click the button of each log or double click it to view its detailed information, as
shown in Figure 14-4. And you can also click the button to view the related video files if
available.
Log Details
If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 14-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.

HIKVISION HWN-2104H-4P Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Output voltage	48 V
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	205 mm
Width	200 mm
Height	48 mm
Weight	1000 g
