Network Video Recorder User Manual
78
6.3 Configuring Motion Detection Recording and Capture
Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion
detection event takes place, the NVR can analyze it and do many actions to handle it. Enabling
motion detection function can trigger certain channels to start recording, or trigger full screen
monitoring, audio warning, notify the surveillance center and so on. In this chapter, you can follow
the steps to schedule a record which triggered by the detected motion.
Step 1 Go to Menu >Camera >Motion

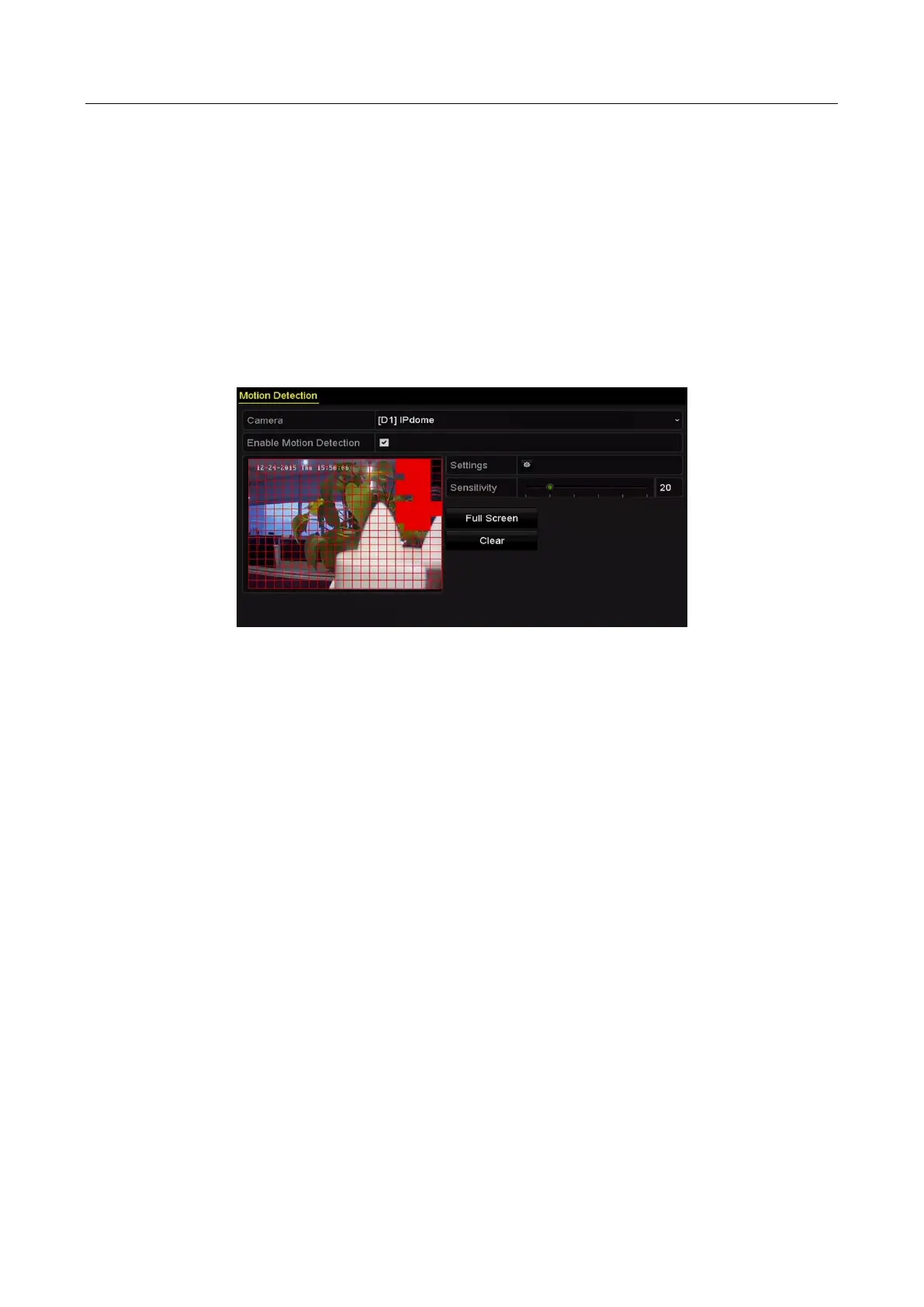

Figure 6-12 Motion Detection
Step 2 Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion
detection for all the area shot by the camera, click Full Screen. To clear the motion
detection area, click Clear.
4) Click Settings, and the message box for channel information pops up.
