Network Video Recorder User Manual
33

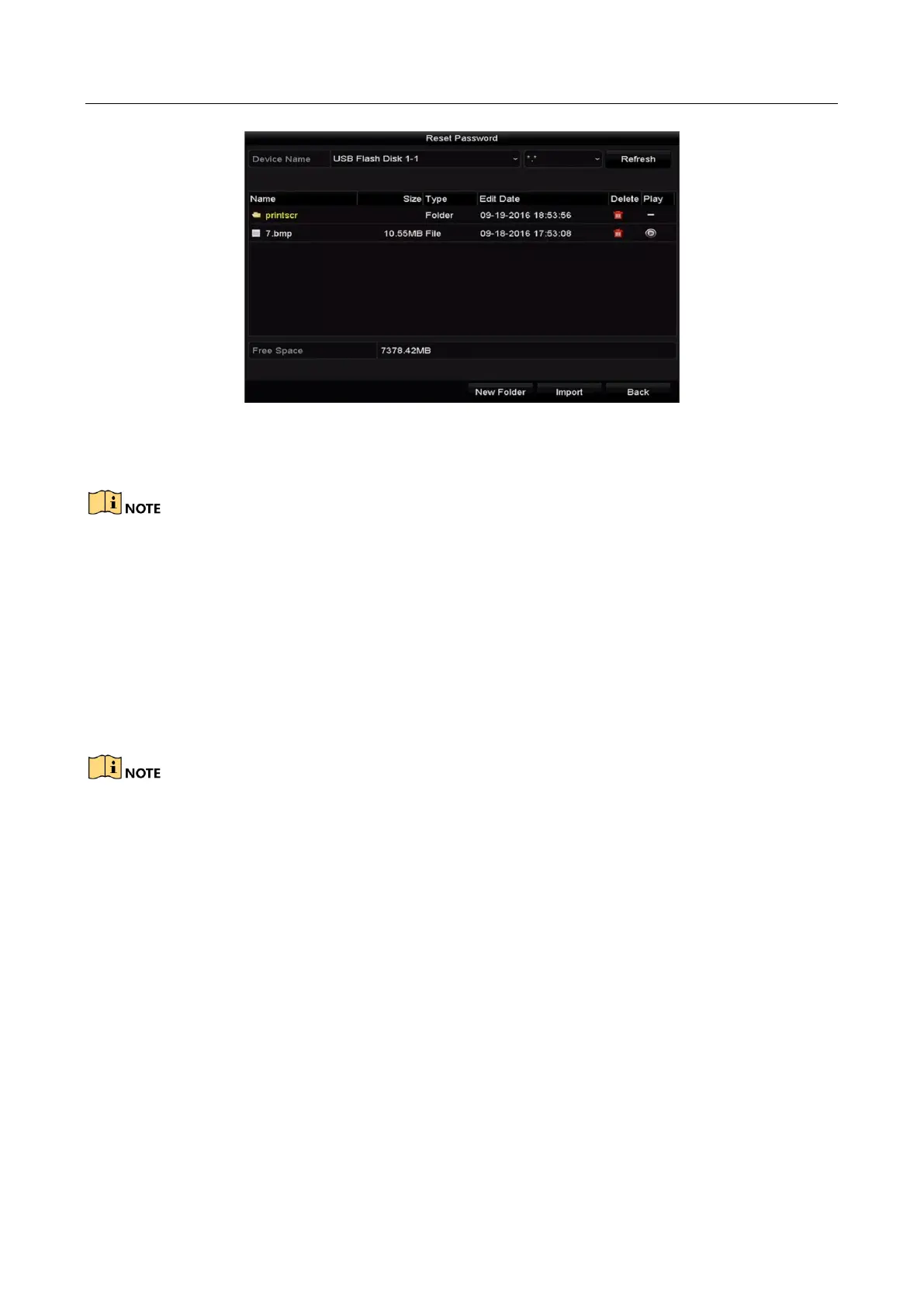

Figure 2-14 Reset Password
Step 2 Select the GUID file from the U flash disk and click Import to import the file to the device.
If you have imported the wrong GUIE file for 7 times, you will be not allowed to reset the password
for 30 minutes.
Step 3 After the GUID file is successfully imported, enter the reset password interface to set the
new admin password. Refer to Chapter 2.1.2 Activating Your Device for details.
Step 4 Click OK to set the new password. You can export the new GUID file to the U flash disk for
future password resetting.
When the new password is set, the original GUID file will be invalid. The new GUID file should be
exported for future password resetting. You can also enter the User>User Management interface to
edit the admin user and export the GUID file.
2.2 Using Wizard for Basic Configuration
The Setup Wizard can walk you through some basic settings of the device. By default, the Setup
Wizard starts once the NVR has loaded.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-9632NXI-I8/16S and is the answer not in the manual?

HIKVISION iDS-9632NXI-I8/16S Specifications

General IconGeneral
Input bandwidth256 Mbit/s
Output bandwidth200 Mbit/s
Maximum frame rate30 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Wi-FiNo
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
RAID supportYes
HDD interfaceSerial ATA
Maximum storage capacity80 TB
Number of HDDs installed0
Number of HDDs supported8
RS-485 ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Product colorBlack
Rack capacity2U
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Power consumption (typical)70 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
Weight10000 g
