HIKVISION iDS-9632NXI-I8/16S User Manual

Network Video Recorder User Manual
116

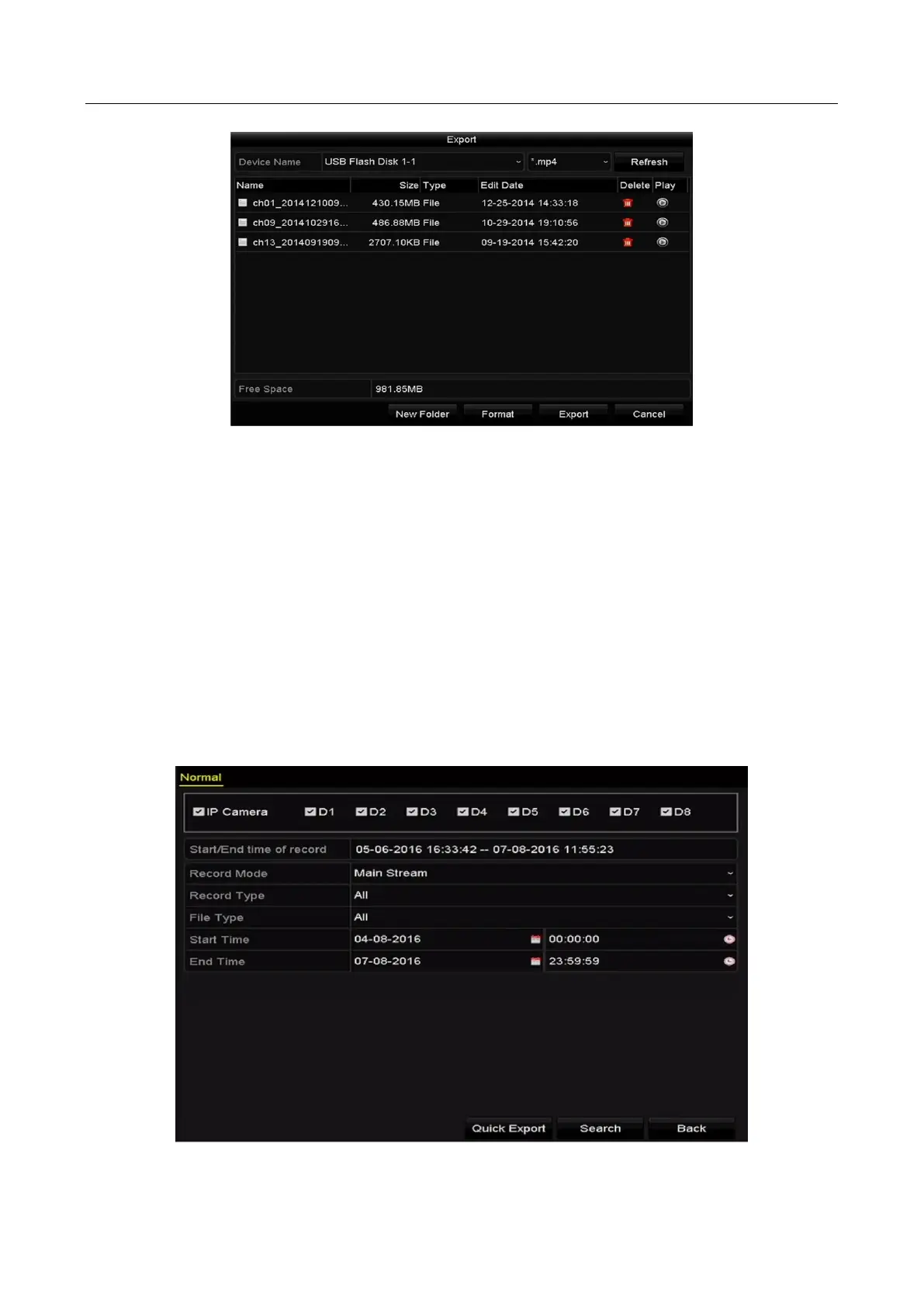

Figure 8-4 Checkup of Quick Export Result Using USB1-1
8.1.2 Backing up by Normal Video/Picture Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs,
USB writer), SATA writer and e-SATA HDD.
Backup using USB flash drives and USB HDDs
Step 1 Go to Menu >Export >Normal.
Step 2 Select the cameras to search.
Step 3 Set search condition and click Search button to enter the search result interface. The
matched video files or pictures are displayed in Chart or List display mode.
Figure 8-5 Normal Video Search for Backup

HIKVISION iDS-9632NXI-I8/16S Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	200 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
RAID support	Yes
HDD interface	Serial ATA
Maximum storage capacity	80 TB
Number of HDDs installed	0
Number of HDDs supported	8
RS-485 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Product color	Black
Rack capacity	2U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W
Power consumption (typical)	70 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	10000 g
