Network Video Recorder User Manual
133
9.4 Detecting Video Tampering Alarm
Purpose:
Trigger alarm when the lens is covered and take alarm response action(s).
Step 1 Go to Menu >Camera >Video Tampering.
Step 2 Select a channel you want to detect video tampering.

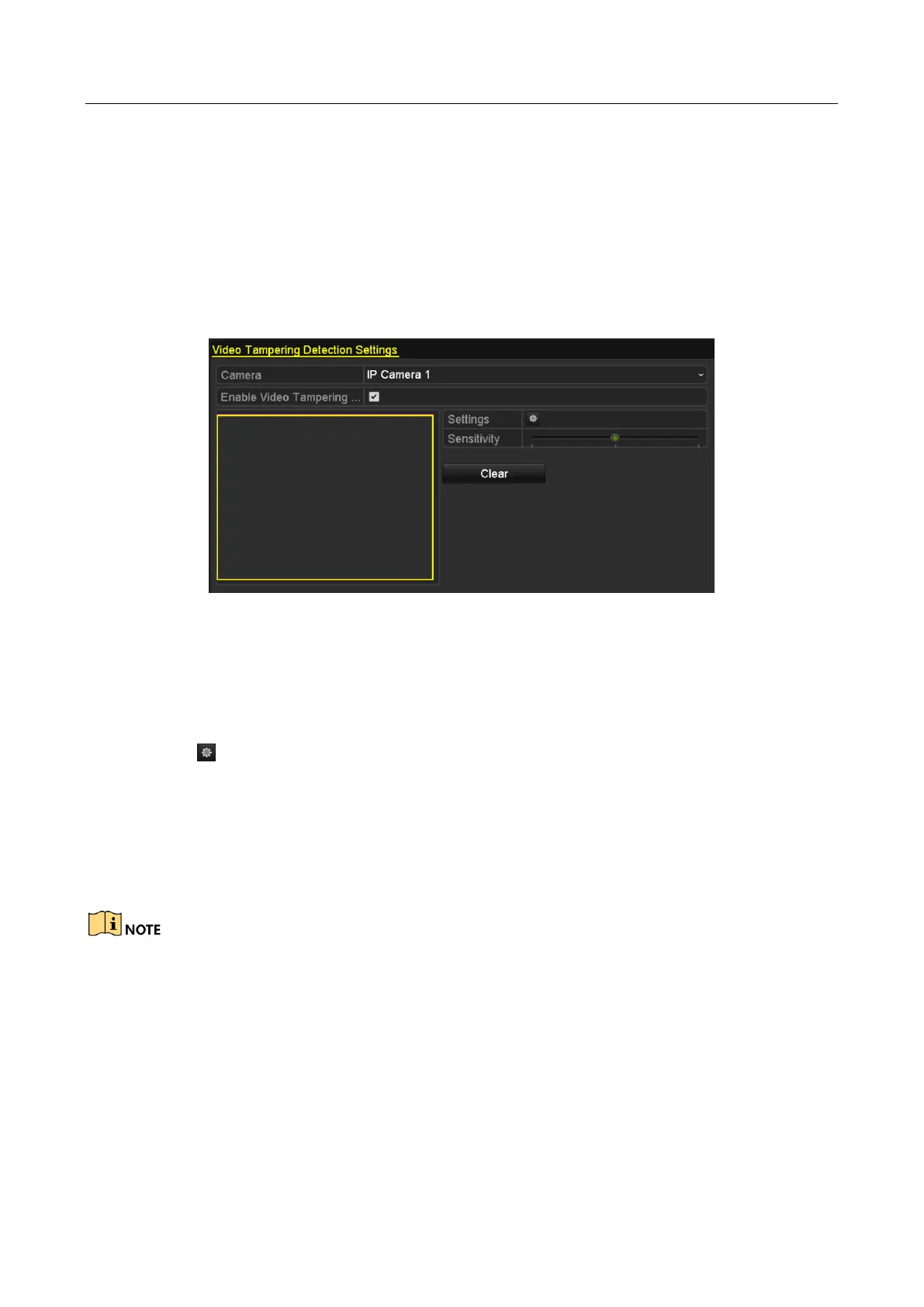

Figure 9-11 Video Tampering Setting Interface
Step 3 Set the video tampering handling action of the channel.
1) Check the checkbox of “Enable Video Tampering Detection”.
2) Drag the sensitivity bar to set a proper sensitivity level. Use the mouse to draw an area
you want to detect video tampering.
3) Click button to set up handling action of video tampering.
Step 4 Set arming schedule and alarm response actions of the channel.
1) Click Arming Schedule tab to set the arming schedule of handling actions.
2) Choose one day of a week and Max. eight time periods can be set within each day.
3) Click Apply button to save the settings.
Time periods shall not be repeated or overlapped.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-9632NXI-I8/16S and is the answer not in the manual?

HIKVISION iDS-9632NXI-I8/16S Specifications

General IconGeneral
Input bandwidth256 Mbit/s
Output bandwidth200 Mbit/s
Maximum frame rate30 fps
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 2560x1440, 1600x1200, 1024x768
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Wi-FiNo
RAID levels0, 1, 5, 6, 10
HDD capacity0 GB
RAID supportYes
HDD interfaceSerial ATA
Maximum storage capacity80 TB
Number of HDDs installed0
Number of HDDs supported8
RS-485 ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Product colorBlack
Rack capacity2U
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)200 W
Power consumption (typical)70 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth470 mm
Width445 mm
Height90 mm
Weight10000 g
