User Manual of Network Traffic Camera
12
Chapter 3 Login
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the camera, and press the Enter
key to enter the login interface.
3. Input User Name and Password.
4. Click Login.
The admin user should configure the device accounts and user/operator permissions
properly. Delete the unnecessary accounts and user/operator permissions.

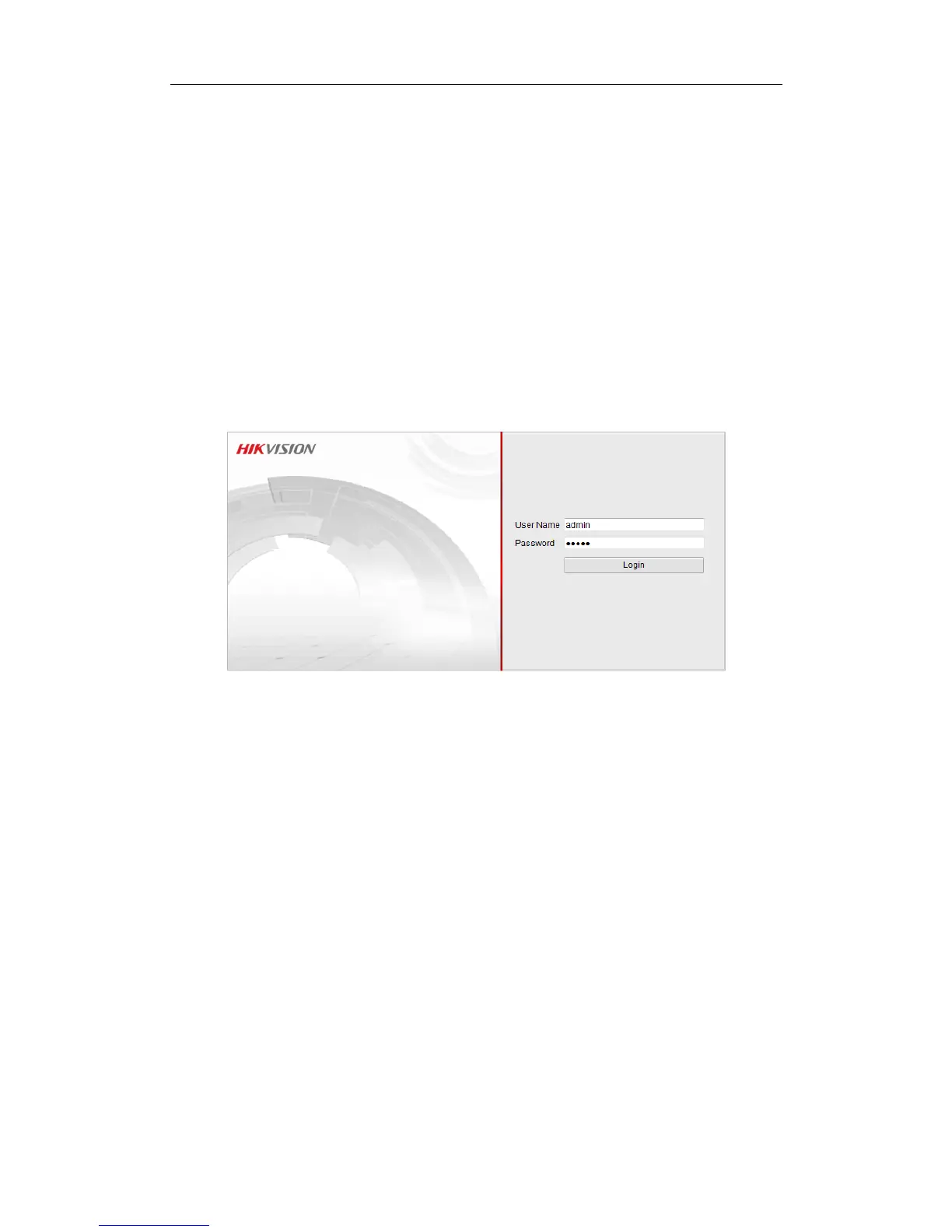

Figure 3-1 Login Interface
5. Install the plug-in before viewing the live video and operating the camera. Please
follow the installation prompts to install the plug-in.

HIKVISION iDS-TCM203-A Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Gray
Protection features	Water resistant
International Protection (IP) code	IP66
Type	IP security camera
Certification	CE, FCC
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	50 m
Number of lenses	1
Focal length range	8 - 32 mm
Maximum aperture number	1.4
Video streaming	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
RS-485 ports	2
Sensor type	CMOS
Optical sensor size	1/1.8 \
LED type	IR
Infra-red wavelength	850 nm
Number of illumination LEDs	3
Minimum illumination	- lx
Field of view (FOV) angle	42.5 °
Audio input channels	2 channels
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
DC output voltage	24
Power source type	DC
Power consumption (max)	15 W

Weight and Dimensions

Depth	428.5 mm
Width	120 mm
Height	132.8 mm
Weight	3120 g
