HIKVISION iDS-TCM203-A User Manual

User Manual of Network Traffic Camera
21
Chapter 6 Log Search
Purpose:
The operation, alarm, exception and information of the camera can be stored in log
files. You can also export the log files on your demand.
Before you start:
Please configure network storage for the camera or insert a memory card in the
camera.
Steps:
1. Click Log on the menu bar to enter log searching page.

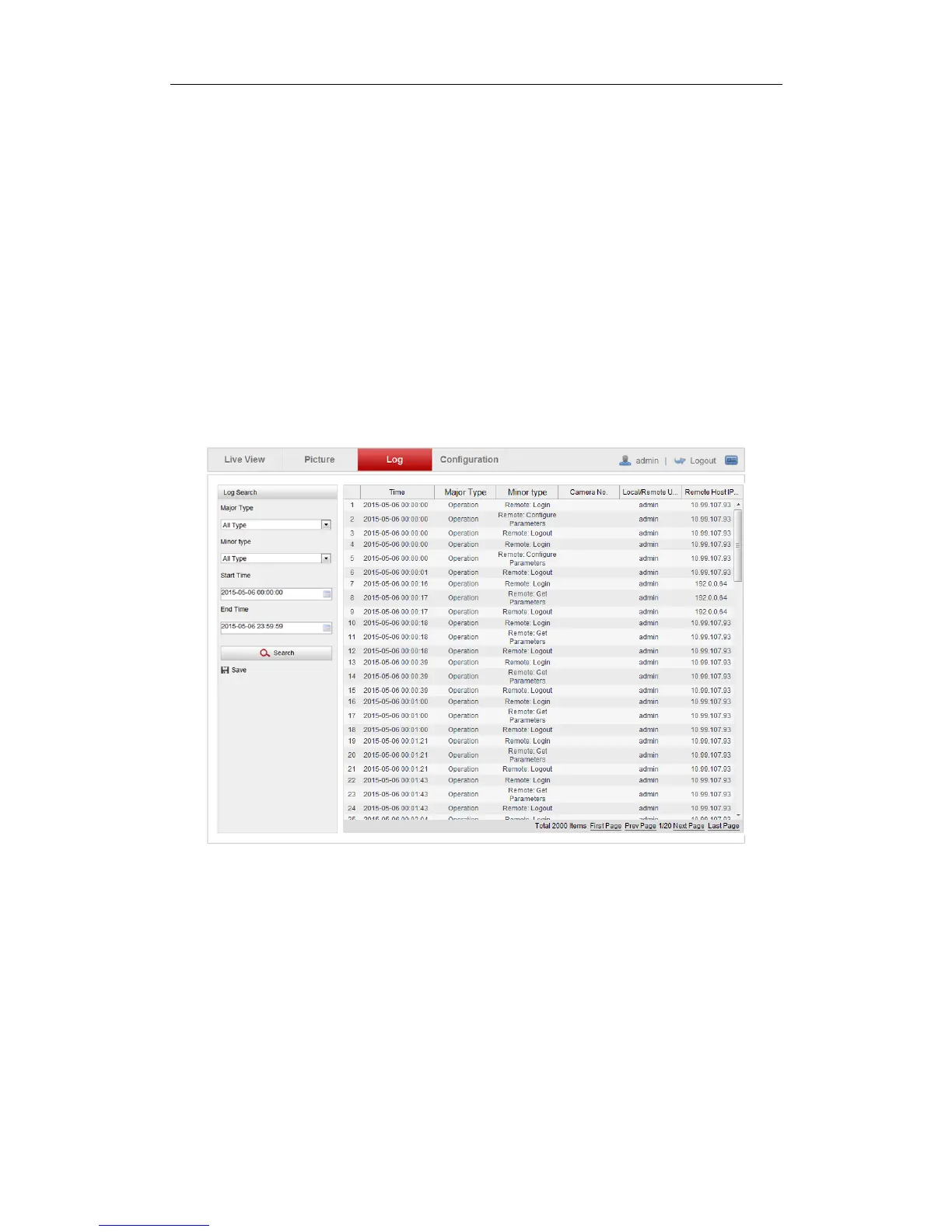

Figure 6-1 Log Searching
2. Set the log search conditions to specify the search, including Major Type, Minor
Type, Start Time, and End Time.
3. Click Search to search log files. The matched log files will be displayed in the
list.
4. To export the log files, click Save to save the log files in your PC.

HIKVISION iDS-TCM203-A Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Gray
Protection features	Water resistant
International Protection (IP) code	IP66
Type	IP security camera
Certification	CE, FCC
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	50 m
Number of lenses	1
Focal length range	8 - 32 mm
Maximum aperture number	1.4
Video streaming	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
RS-485 ports	2
Sensor type	CMOS
Optical sensor size	1/1.8 \
LED type	IR
Infra-red wavelength	850 nm
Number of illumination LEDs	3
Minimum illumination	- lx
Field of view (FOV) angle	42.5 °
Audio input channels	2 channels
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
DC output voltage	24
Power source type	DC
Power consumption (max)	15 W

Weight and Dimensions

Depth	428.5 mm
Width	120 mm
Height	132.8 mm
Weight	3120 g
