HIKVISION iDS-TCM203-A User Manual

User Manual of Network Traffic Camera revise
37

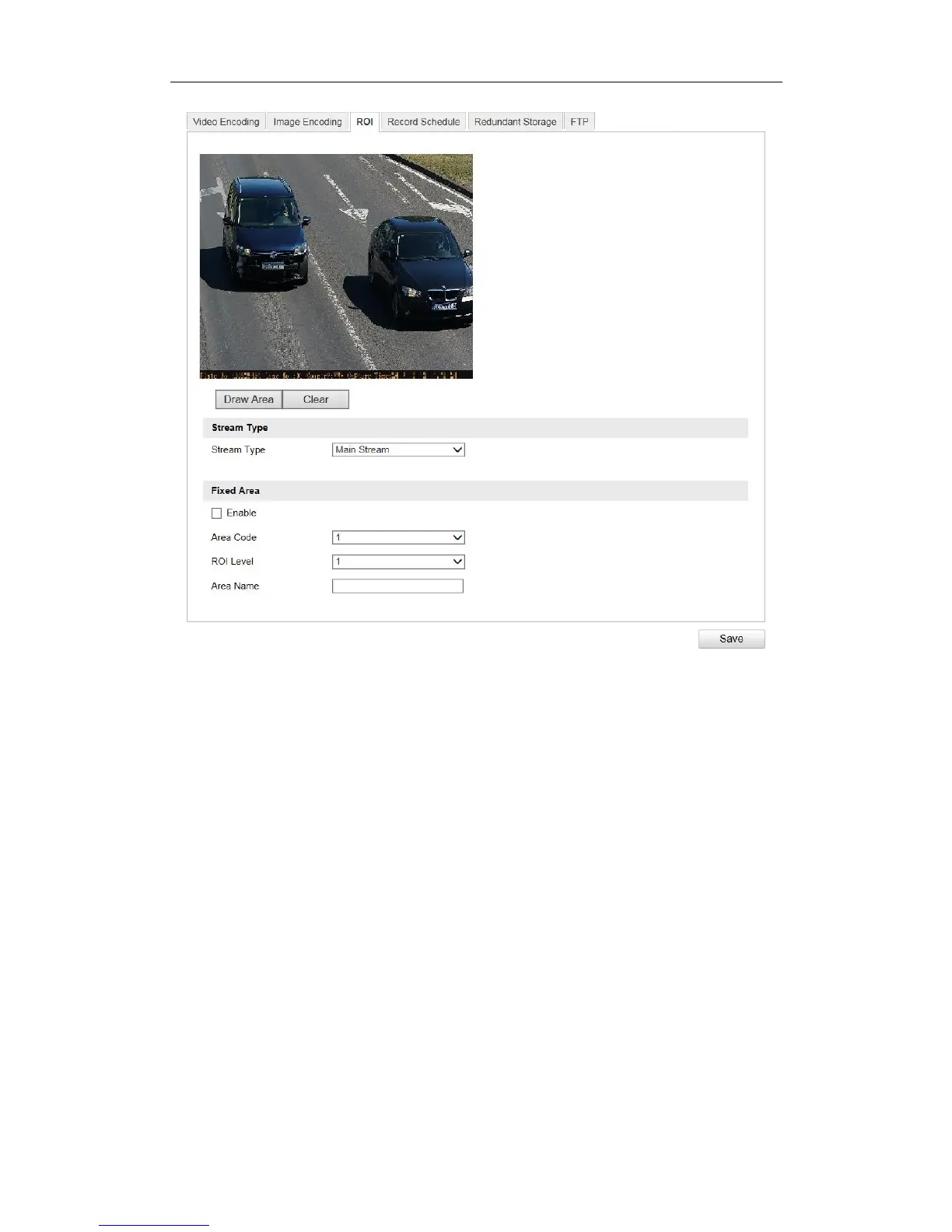

Figure 9-3 ROI Settings
2. Select Stream Type for ROI encoding.
This camera model supports main stream and sub stream.
3. Check Enable under Fixed Area item.
4. Select Area Code from the drop-down list for ROI settings. There are four fixed
areas selectable.
5. Click Draw Area, and then drag the mouse to draw the region of interest on the
live video.
6. Select ROI Level to set the image quality enhancing level. The larger the value is,
the better the image quality is.
7. Enter Area Name for ROI as desired.
8. Click Save to save the settings.

HIKVISION iDS-TCM203-A Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Gray
Protection features	Water resistant
International Protection (IP) code	IP66
Type	IP security camera
Certification	CE, FCC
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	50 m
Number of lenses	1
Focal length range	8 - 32 mm
Maximum aperture number	1.4
Video streaming	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
RS-485 ports	2
Sensor type	CMOS
Optical sensor size	1/1.8 \
LED type	IR
Infra-red wavelength	850 nm
Number of illumination LEDs	3
Minimum illumination	- lx
Field of view (FOV) angle	42.5 °
Audio input channels	2 channels
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
DC output voltage	24
Power source type	DC
Power consumption (max)	15 W

Weight and Dimensions

Depth	428.5 mm
Width	120 mm
Height	132.8 mm
Weight	3120 g
