User Manual of Network Traffic Camera revise
48

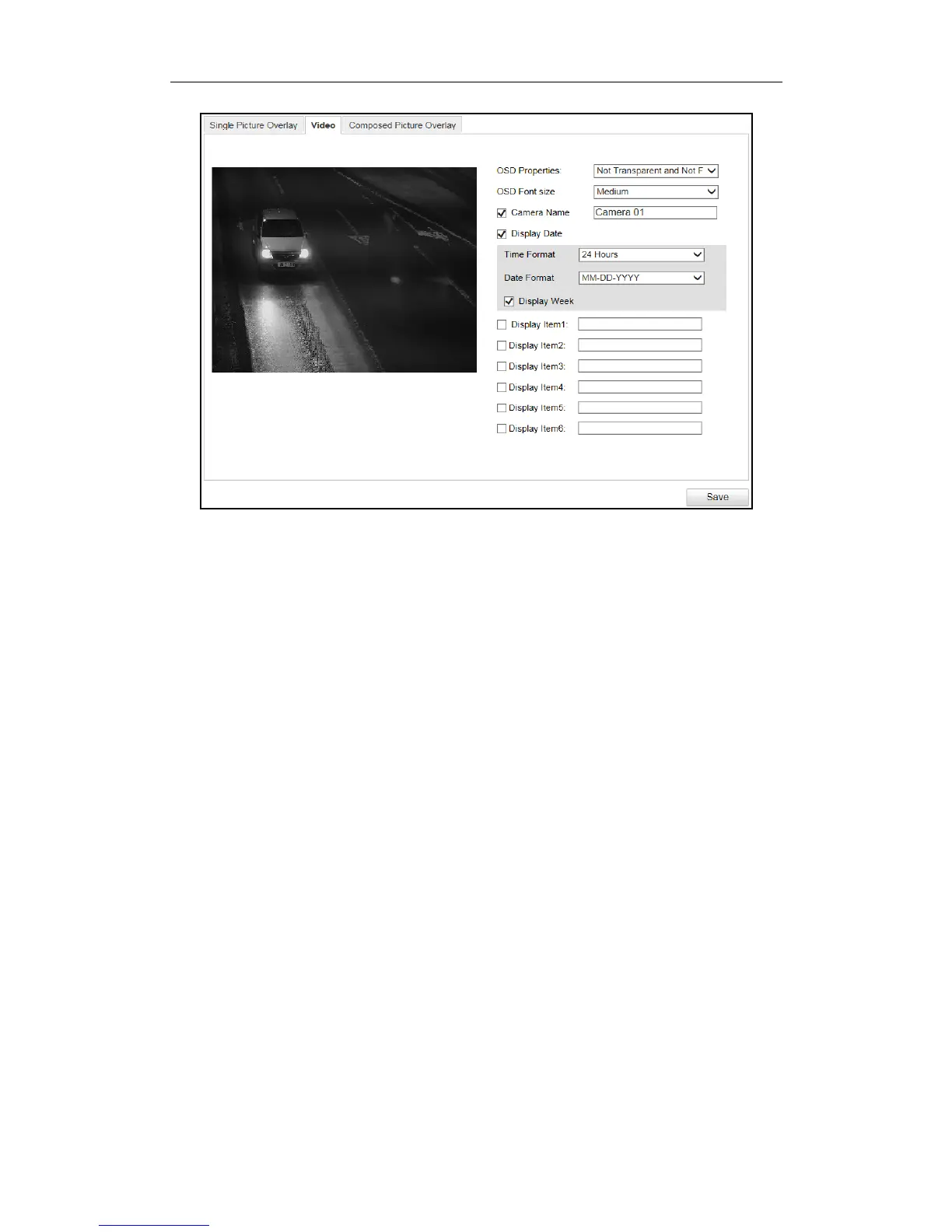

Figure 10-7 OSD on Video
2. Select the OSD Properties.
3. Select the OSD Font Size.
4. Configure the parameters below according to your needs.
 Check Camera Name and edit the name in the text field.
 Configure date.
1) Check Display Date.
2) Select the Time Format.
3) Select the Date Format.
4) Check Display Week.
5) Check Display Millisecond.
 Check Display Item and edit the custom content in the corresponding text
fields.
5. Click Save to save the settings.

HIKVISION iDS-TCM203-A Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Gray
Protection features	Water resistant
International Protection (IP) code	IP66
Type	IP security camera
Certification	CE, FCC
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	50 m
Number of lenses	1
Focal length range	8 - 32 mm
Maximum aperture number	1.4
Video streaming	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
RS-485 ports	2
Sensor type	CMOS
Optical sensor size	1/1.8 \
LED type	IR
Infra-red wavelength	850 nm
Number of illumination LEDs	3
Minimum illumination	- lx
Field of view (FOV) angle	42.5 °
Audio input channels	2 channels
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
DC output voltage	24
Power source type	DC
Power consumption (max)	15 W

Weight and Dimensions

Depth	428.5 mm
Width	120 mm
Height	132.8 mm
Weight	3120 g
