4.7 Knee Section Motor
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 24 CareAssist® and CareAssist® ES Bed Service Manual (MAN330 REV 4)

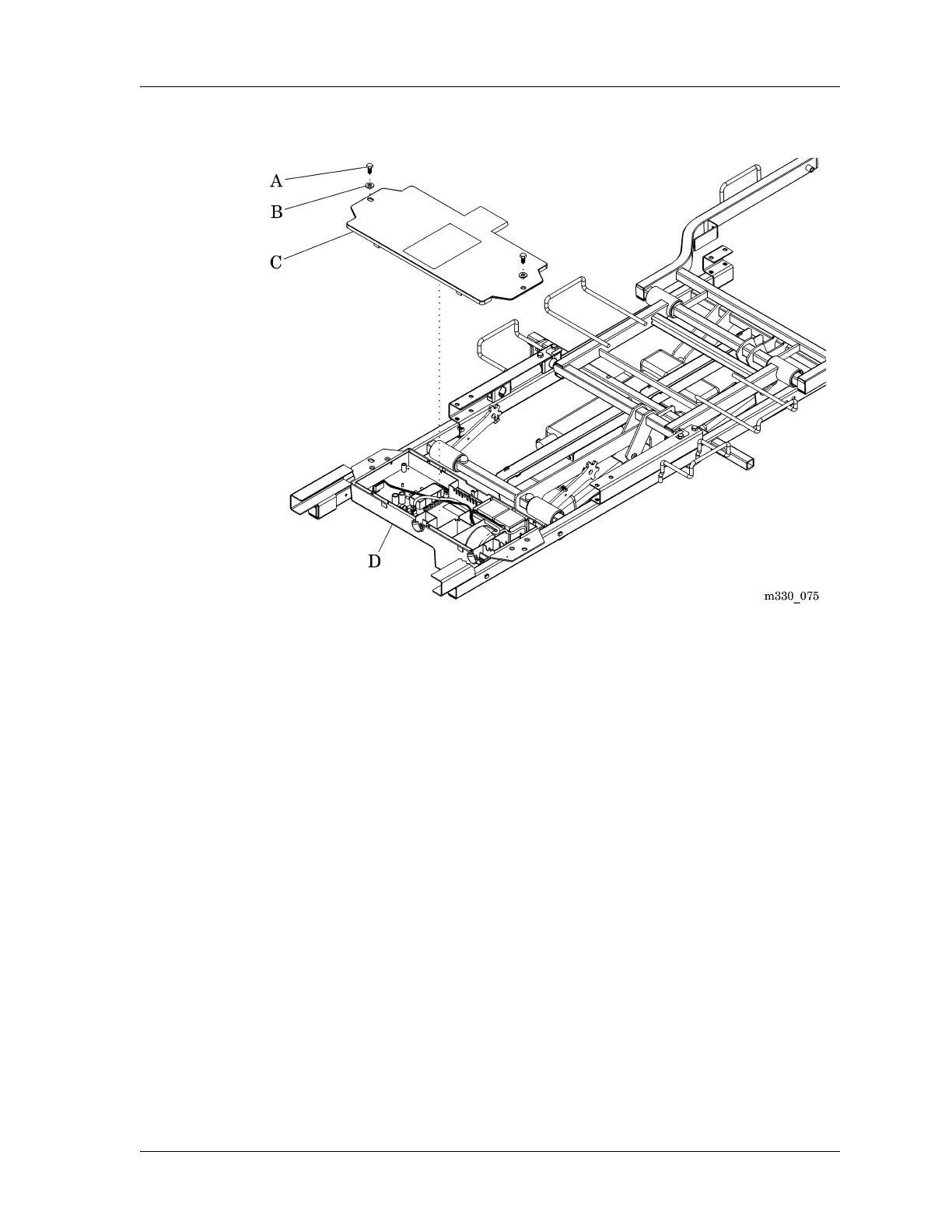

Figure 4-11. Power Supply
7. For B model beds, do as follows:
a. Remove the two screws (I) from the retainers (K) (see figure 4-12 on
page 4-25).
b. Remove the retainers (K).
c. Remove the three screws (L) that attach the power supply cover (M) to
the power supply (N).
d. Remove the power supply cover (M).
NOTE:
The power supply cover is connected to the power supply P.C. board by the
battery cable.
e. Disconnect the battery cable from the power supply P.C. board.
f. Remove the power supply cover (M) from the bed.
