Hill-Rom CareAssist P1170 User Manual

4.22 Foot Hilow Column (B Model and Newer Beds)
Chapter 4: Removal, Replacement, and Adjustment Procedures
CareAssist® and CareAssist® ES Bed Service Manual (MAN330 REV 4) Page 4 - 69
4

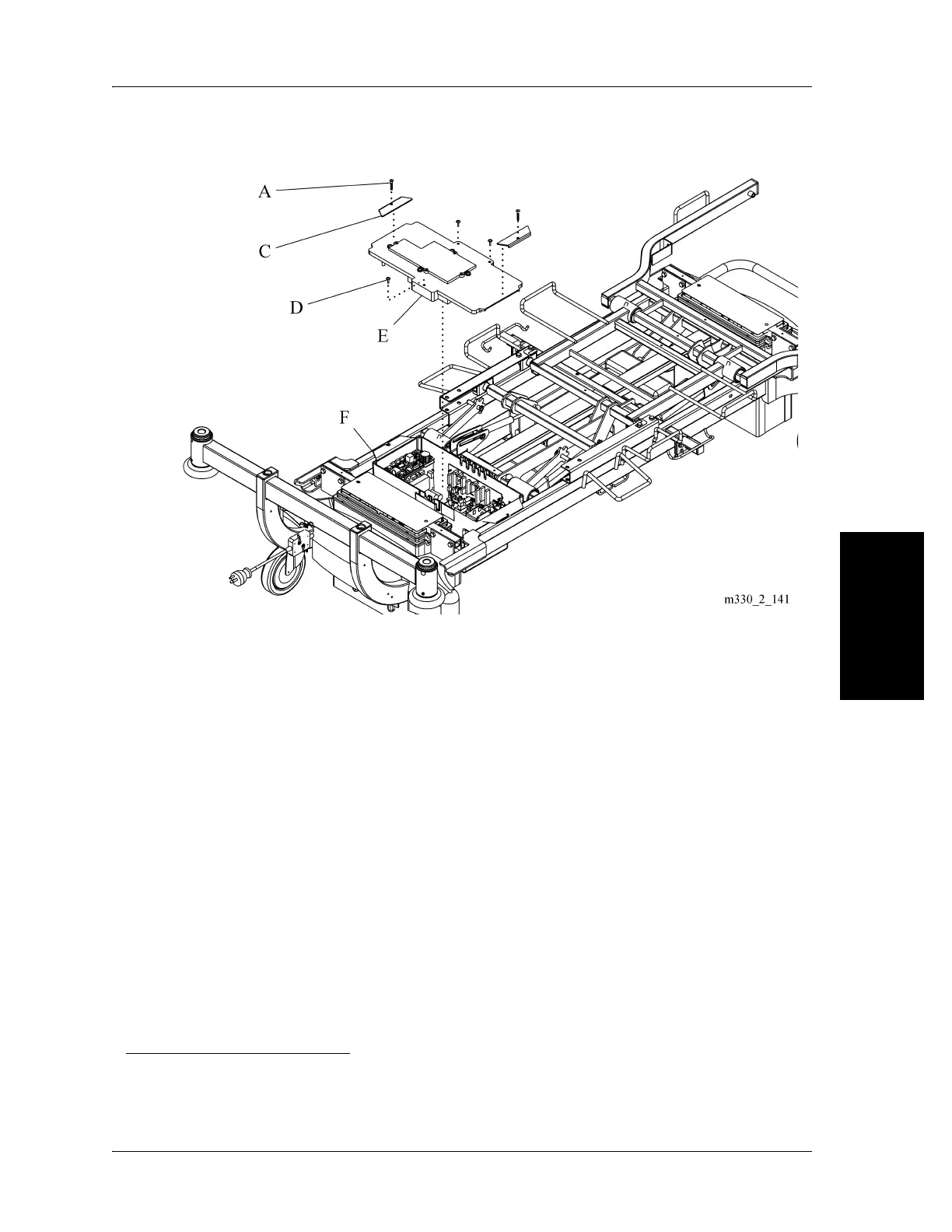

Figure 4-30. Power Supply Cover
11. Remove the three screws (D) that attach the power supply cover (E) to the
power supply (F).
12. Remove the power supply cover (E).
NOTE:
The power supply cover is connected to the power supply P.C. board by the
battery cable.
13. Disconnect the battery cable from the power supply P.C. board.
14. Remove the power supply cover (E) from the bed.
15. Install the Vise-Grips®
1
into the head hilow channel.
16. Disconnect the column cable from the power supply P.C. board.
17. Tie the string around the end of the column cable.
1. Vise-Grip® is a registered trademark of Petersen Manufacturing Company, Inc.

Hill-Rom CareAssist P1170 Specifications

General

Model	CareAssist P1170
Type	Hospital Bed
Weight Capacity	500 lbs (227 kg)
Trendelenburg Position	Yes
Reverse Trendelenburg Position	Yes
Battery Backup	Yes
Frame Material	Steel
Knee Gatch	Yes
Head Section	Adjustable
Foot Section	Adjustable
CPR Release	Yes
Overall Width	39 in
Height Range	15 in to 30 in
Side Rails	Yes
Power Source	Electric
Mattress Type	Foam or Air
Patient Controls	Yes
Wheels	Locking Casters
Warranty	Varies
Overall Length	88 inches (223.5 cm)
