Hill-Rom CareAssist P1170 User Manual

4.30 Scale P.C. Board (B Model and Newer Beds)
Chapter 4: Removal, Replacement, and Adjustment Procedures
CareAssist® and CareAssist® ES Bed Service Manual (MAN330 REV 4) Page 4 - 93
4

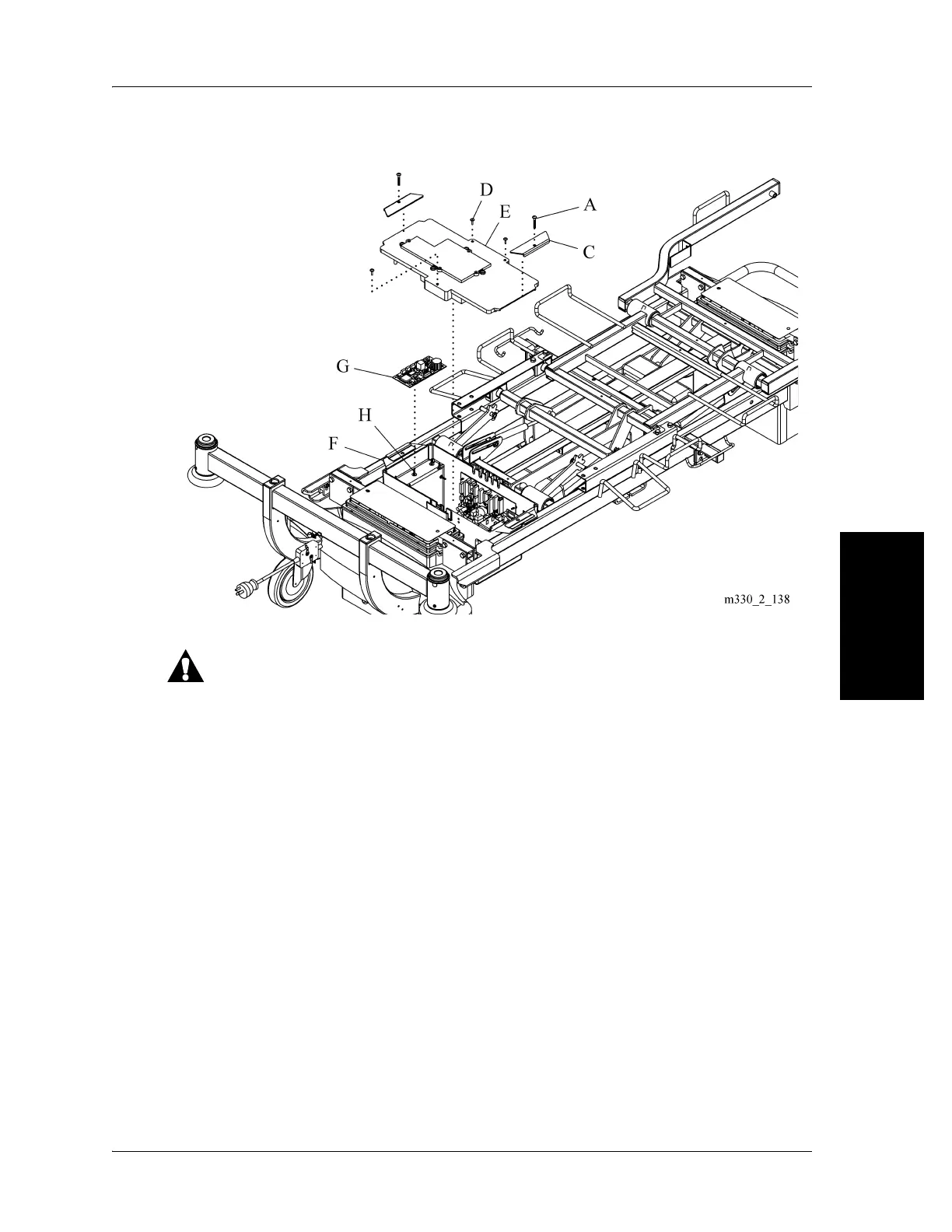

Figure 4-39. Scale P.C. Board
CAUTION:
When handling electronic components, wear an antistatic strap. Failure
to do so could cause component damage.
11. Put on the antistatic strap.
12. Disconnect the cables from the scale P.C. board (G).
13. Pinch the ends of the standoffs (H).
14. Pull the P.C. board (G) off the standoffs (H).
15. Remove the P.C. board (G) from the power supply (F).
Replacement
1. Do the removal procedure in reverse order.
2. Calibrate the scale, refer to “Scale Calibration” on page 6-14.
3. Do the “Function Checks” on page 2-5.

Hill-Rom CareAssist P1170 Specifications

General

Model	CareAssist P1170
Type	Hospital Bed
Weight Capacity	500 lbs (227 kg)
Trendelenburg Position	Yes
Reverse Trendelenburg Position	Yes
Battery Backup	Yes
Frame Material	Steel
Knee Gatch	Yes
Head Section	Adjustable
Foot Section	Adjustable
CPR Release	Yes
Overall Width	39 in
Height Range	15 in to 30 in
Side Rails	Yes
Power Source	Electric
Mattress Type	Foam or Air
Patient Controls	Yes
Wheels	Locking Casters
Warranty	Varies
Overall Length	88 inches (223.5 cm)
