Hilti SCW 22-A User Manual

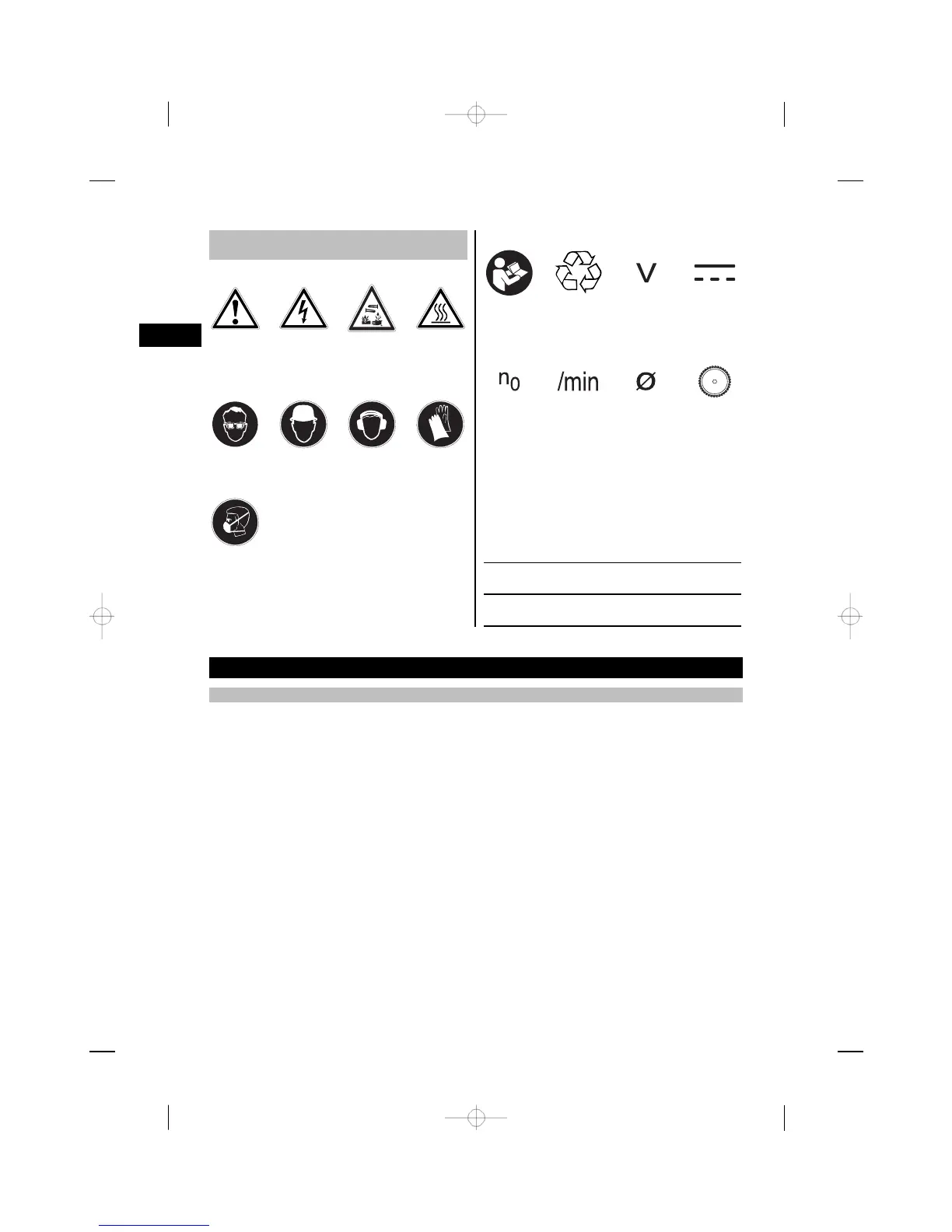

1.2 Explanation of the pictograms and other
information
Warning signs
General
warning
Warning:
electricity
Warning:
caustic
substances
Warning: hot
surface
Obligation signs
Wear eye
protection
Wear a hard
hat
Wear ear
protection
Wear
protective
gloves
Wear
breathing
protection
Symbols
Read the
operating
instructions
before use
Return waste
material for
recycling.
Volts Direct current
Rated speed
under no load
Revolutions
per minute
Diameter Saw blade
Location of identification data on the power tool
The type designation and serial number can be found
on the type identification plate on the machine or tool.
Make a note of this data in your operating instructions
and always refer to it when making an enquiry to your
Hilti representative or service department.
Type:
Generation: 01
Serial no.:
2. Description
2.1 Use of the product as directed
The power tool is a hand-held, cordless circular saw.
The power tool is designed for cutting wood or wood-like materials, plastics, gypsum plasterboard, gypsum
fiberboard and composites up to a cutting depth of 57 mm and for making bevel cuts at angles between 0°
and 50°.
Working on materials hazardous to the health (e.g. asbestos) is not permissible.
The power tool is designed for professional use and may be operated, serviced and maintained only by trained,
authorized personnel. This personnel must be informed of any special hazards that may be encountered. The
power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or
when used not as directed.
The working environment may be as follows: construction site, workshop, renovation, conversion or new
construction.
Modification of the power tool or tampering with its parts is not permissible.
The use of saw blades that do not comply with the given specification (e.g. diameter, thickness) or the use of
cutting and grinding discs or blades made from high-alloy steel (HSS steel) is not permissible.
Sawing metals is not permissible.
Do not use the power tool to cut tree branches or trunks.
Do not use the battery as a power source for other unspecified appliances.
To avoid the risk of injury, use only genuine Hilti accessories and insert tools.
Observe the information printed in the operating instructions concerning operation, care and maintenance.
en
20

Hilti SCW 22-A Specifications

General

Blade diameter	165 mm
Idle speed (max)	4000 RPM
Cutting depth (45º)	42 mm
Cutting depth (90º)	57 mm
Sound pressure level	93 dB
Vibration level (wood cutting)	1.2 m/s²
Product color	Black, Red
Country of origin	Germany
Dust extraction port	Yes
Power source	Battery
Diamond disc	-
Battery included	No
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Package depth	898 mm
Package width	5400 mm
Package height	2000 mm
Package weight	1345 g
