Once it has been detected that the engine is running the LED switches on ( ),
this indicates the end of the start cycle and the START button turns off. (3)
Fig.3
The LED corresponding to the battery charging alternator voltage ( ) switches
on when the voltage provided by the alternator exceeds the voltage threshold set
by default. (4)
Fig.4
PRACTICAL EXAMPLE OF A START OPERATION
NOTE
Before starting the start cycle it is advisable to ensure the genset's main circuit
breaker is in the off position (OFF).
OPERATION

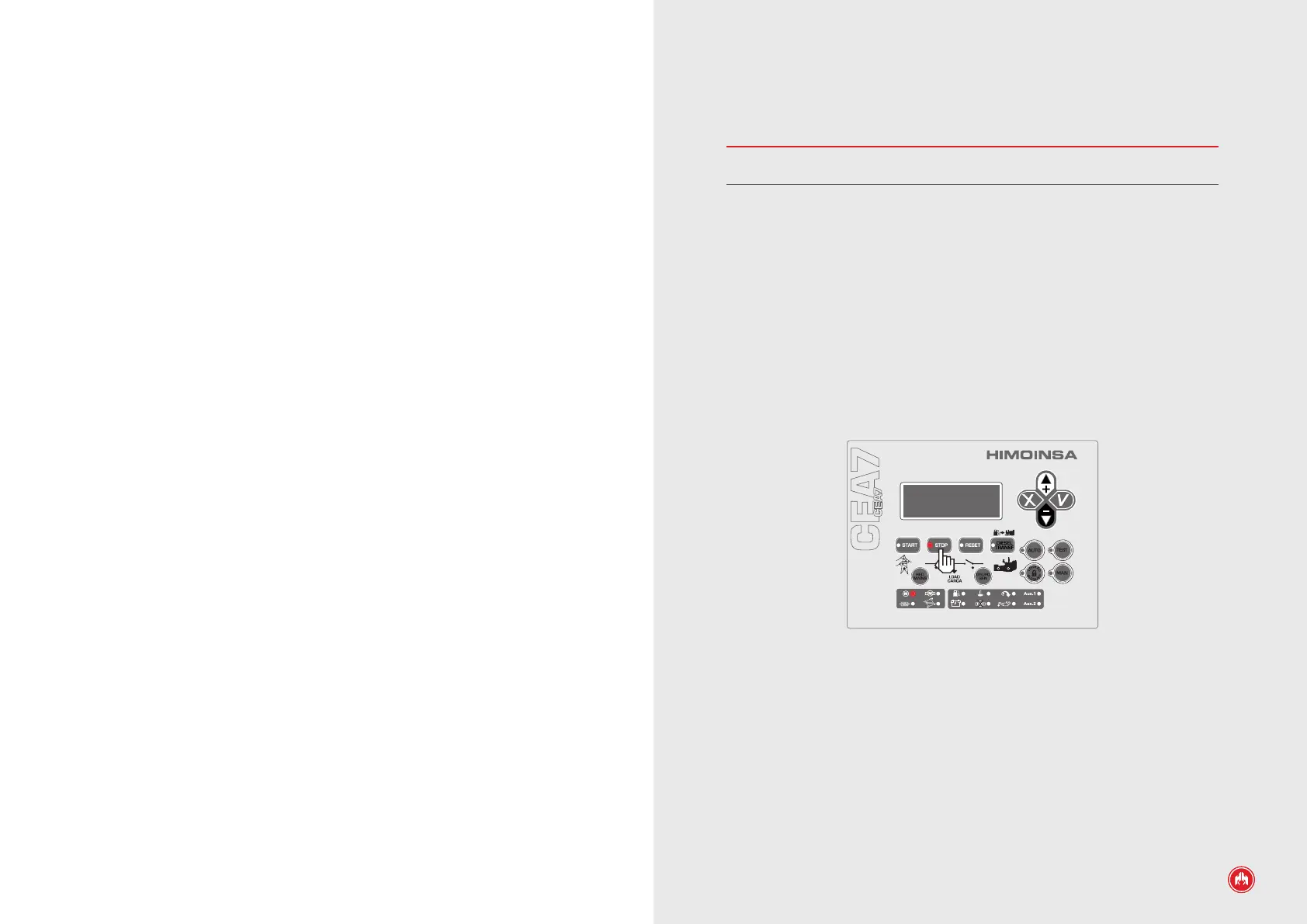

By pressing the START button the start cycle is initiated and is indicated by the
START button's LED switching on. At the same time if the motor has a preheating
plug the PR output is activated, with the corresponding LED switching on (
),
for the programmed time. (1)
Fig.1
Once this time has elapsed the PR output is deactivated, and the corresponding
LED turns off (
) and immediately the positive contact of the PC output is
activated and 0.5 seconds later the ARR output with the switching on of the LED
(
), this output remains activated until any engine running condition is
detected. (2)
Fig.2
OPERATION | PAGE 13
