OPERATING MODES | PAGE 9
3.5 AUTOMATIC MODE LOCK

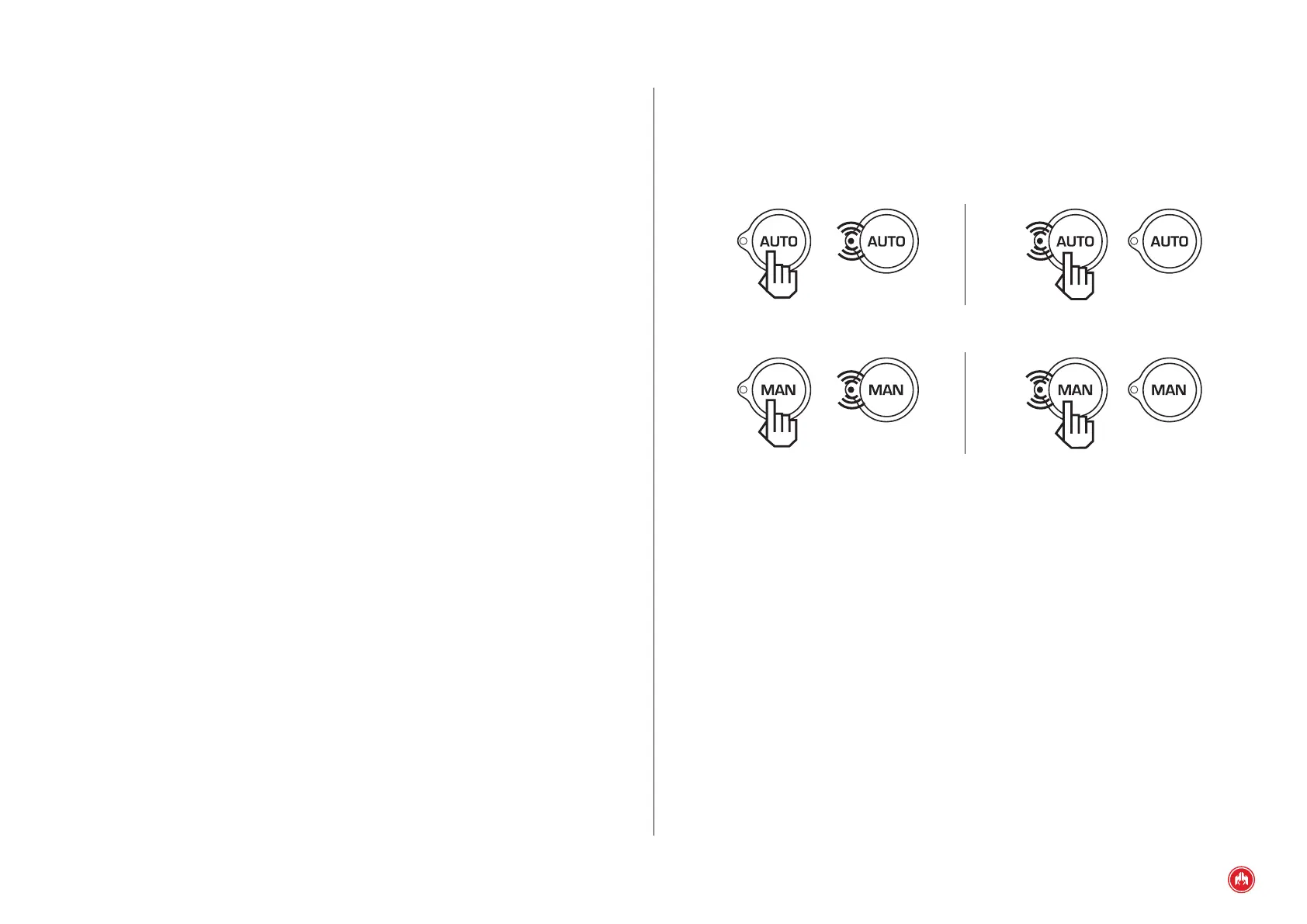

Pressing the Auto or Man keys for 5 seconds activates the locking of the mode.
This control unit state is indicated by the ashing of the mode key currently
active. To deactivate the mode lock and allow normal operation of the control
unit, press the key associated to the active mode for 5 seconds.
5 ’’ Locked 5 ’’ Unlocked
5 ’’ Locked 5 ’’ Unlocked
Programmable conditions for genset starting without activation of the genset
contactor include:
• (ESP1) Tariff warning (Settings table, parameter 7).
• Engine test (Settings table, parameter 11).
3.3 TEST MODE
In test mode, the control unit starts the genset following the procedure explained
in the section Engine Starting except the activation of contactors except in the
event a network failure occurs.
In Test mode, the control unit does not manage the functions associated with the
programmable inputs except those relating to alarms, analogue inputs and the
starter disable function of the control unit (IA).
3.4 LOCKED MODE
In Lock mode, the control unit disables the genset startup under any condition.
