3.5 LAN Settings and Connection (when connected to the Z3002)
31
Chapter 3 Model IM3523 Connection and Setting
4

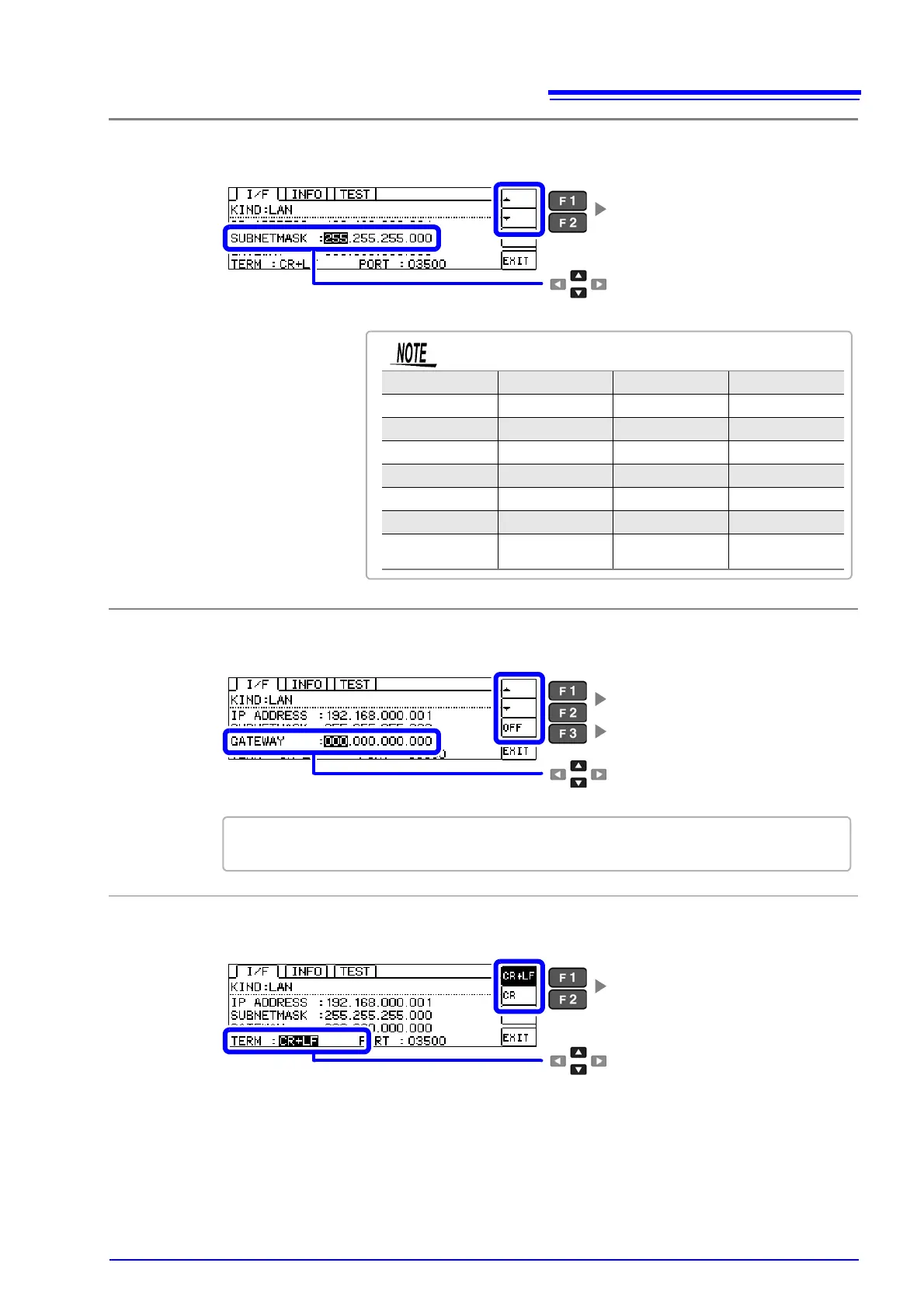

Select the subnet mask.
5
Select the default gateway.
6
Select the terminator setting.
128.000.000.000 255.128.000.000 255.255.128.000 255.255.255.128
192.000.000.000 255.192.000.000 255.255.192.000 255.255.255.192
224.000.000.000 255.224.000.000 255.255.224.000 255.255.255.224
240.000.000.000 255.240.000.000 255.255.240.000 255.255.255.240
248.000.000.000 255.248.000.000 255.255.248.000 255.255.255.248
252.000.000.000 255.252.000.000 255.255.252.000 255.255.255.252
254.000.000.000 255.254.000.000 255.255.254.000
255.000.000.000 255.255.000.000 255.255.255.000
(Initial setting)
Any of the following 30 subnet masks can be set for the instrument.
Select.
1
Select the subnet mask.
2
Select.
1
Select the default gateway.
2
Set the default gateway to OFF
(000.000.000.000).
If the default gateway does not need to be set, for example, when connecting the instrument and
computer on a one-to-one basis using a cross cable, leave this set to OFF.
Select.
1
Select the terminator setting.
2
