Hioki MEMORY HiLOGGER LR8450 Quick Start Manual

29

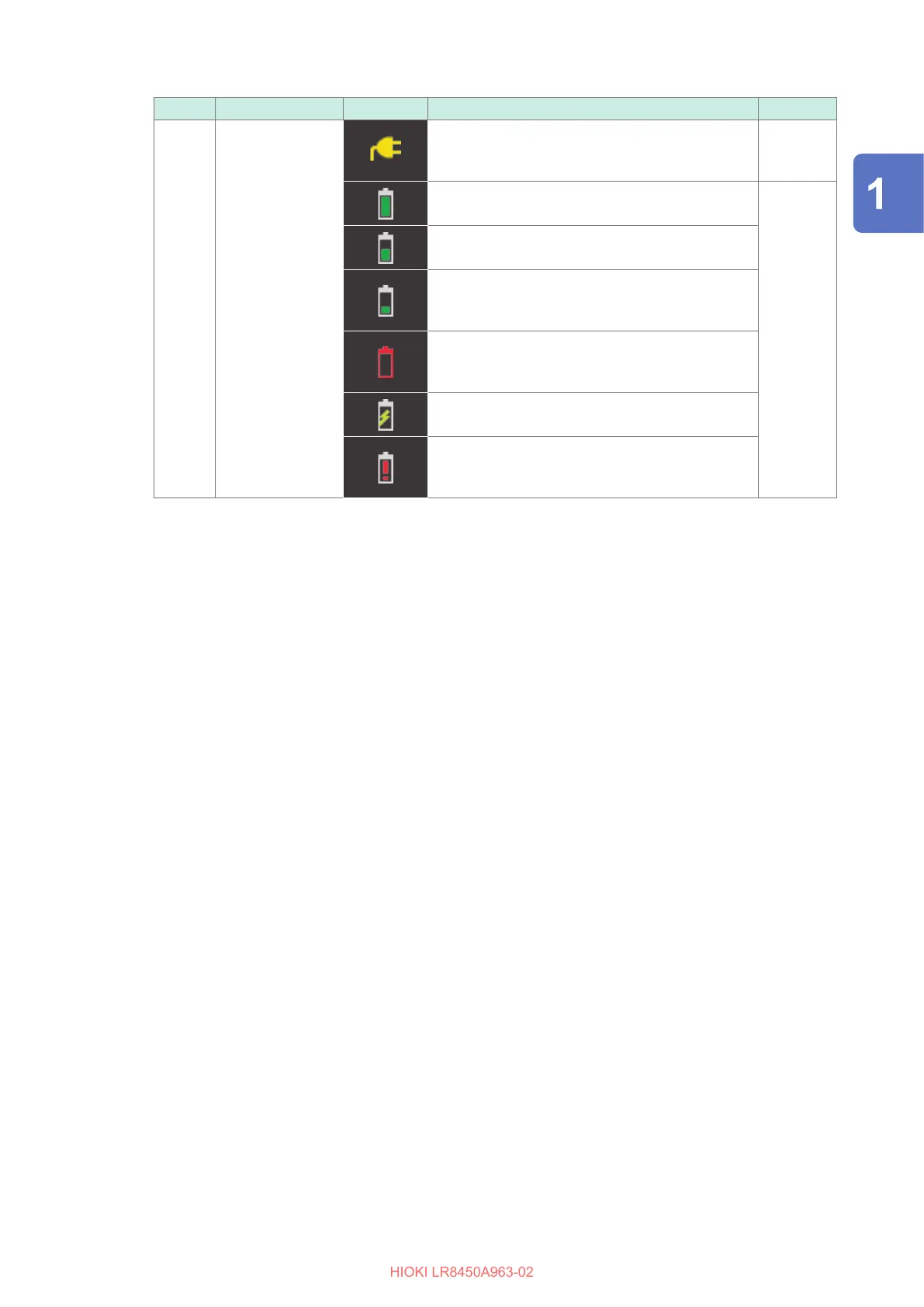

Part Names and Functions; Screens
No. Item Icon Description See
99
Instrument
power*
4
Running on AC Adapter power.
The icons will also be displayed when the modules
are running on externally supplied power.
p. 46
p. 48
Running on battery power (fully charged).
p. 40
Running on battery power.
Running on battery power.
The battery starts to run out. Connect the AC
adapter to charge the battery.
Running on battery power.
The battery has run out. Connect the AC adapter to
charge the battery.
Running on AC Adapter power.
The battery is being charged.
A battery anomaly has occurred.
Immediately stop the use of the instrument and
remove the Battery Packs.
*1: The amount of available space on the media that is selected as the preferred auto save location is
displayed to the right of the media’s icon.
*2: The left icon indicates the state of the voltage output terminal 1: the right, that of the voltage output terminal
2.
*3: The power and signal strength status of each wireless module will be displayed using a two-tier icon.
When the multiple wireless modules are registered, they show in the module number order from the left.
*4: Two icons will appear if two Z1007 Battery Packs have been inserted.
The icon on the right indicates the status of the Battery Pack on the right when the instrument is viewed
from the front (looking at the LCD screen), while the icon on the left indicates the status of the Battery Pack
on the left.
