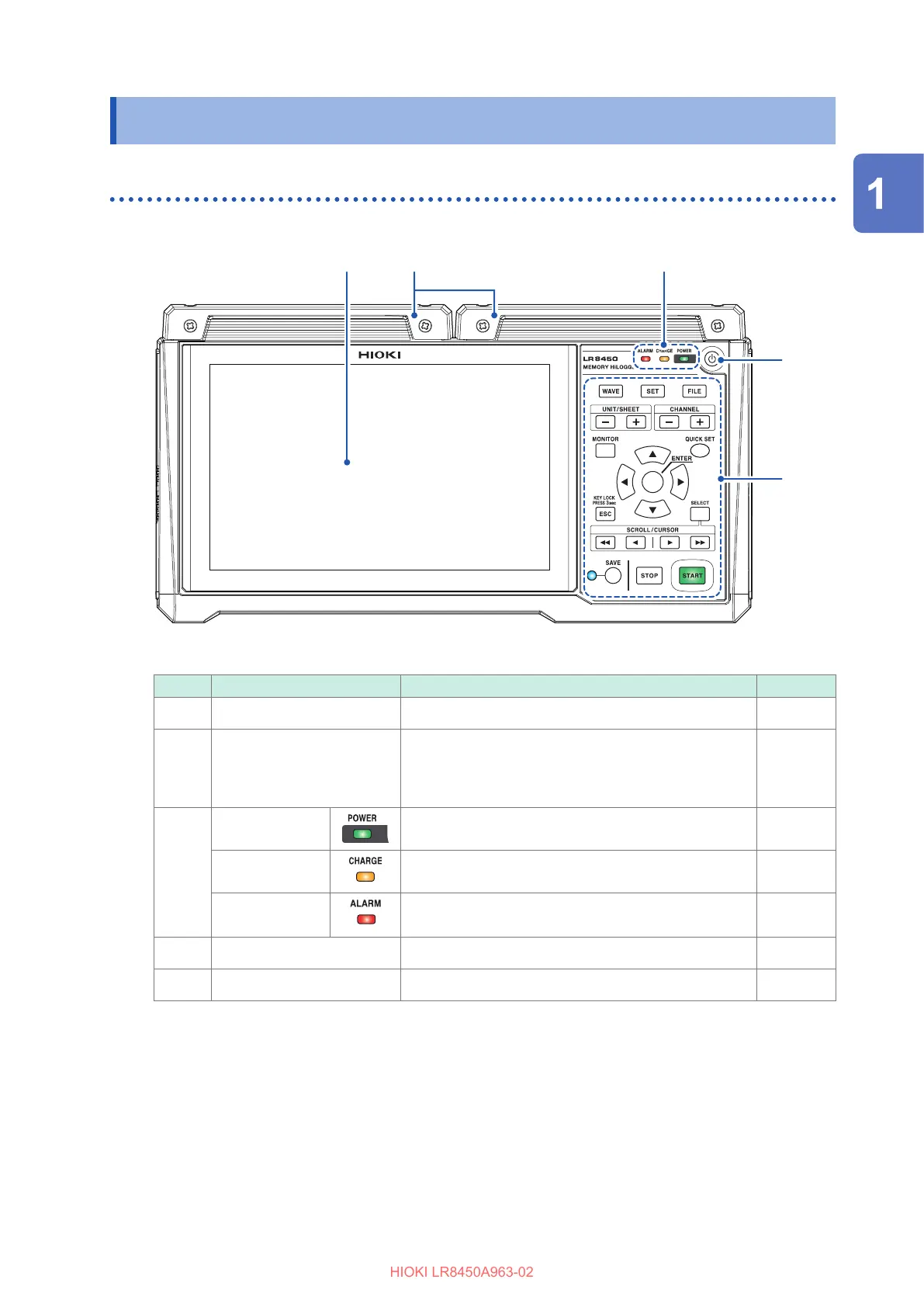

Part Names and Functions; Screens
1.2 Part Names and Functions; Screens
LR8450/LR8450-01 Memory HiLogger
Front
11
22
55
44
33
No. Name Functionality See
11
Display The instrument features a 7-inch TFT color LCD.
–
22
Connector covers Inside each cover are connectors for plug-in modules.
A󰀩x the covers when not installing plug-in modules.
The covers can also be used as connector covers for
plug-in modules.
p. 38
33
POWER LED
Lights up when the instrument is on.
p. 66
CHARGE LED
Lights up when the instrument is charging.
p. 44
ALARM LED
Lights up when an alarm occurs. Instruction
Manual
44
Power key Turns the instrument on or o󰀨.
p. 66
55
Key controls See following page.
–
Overview
HIOKI LR8450A963-02
