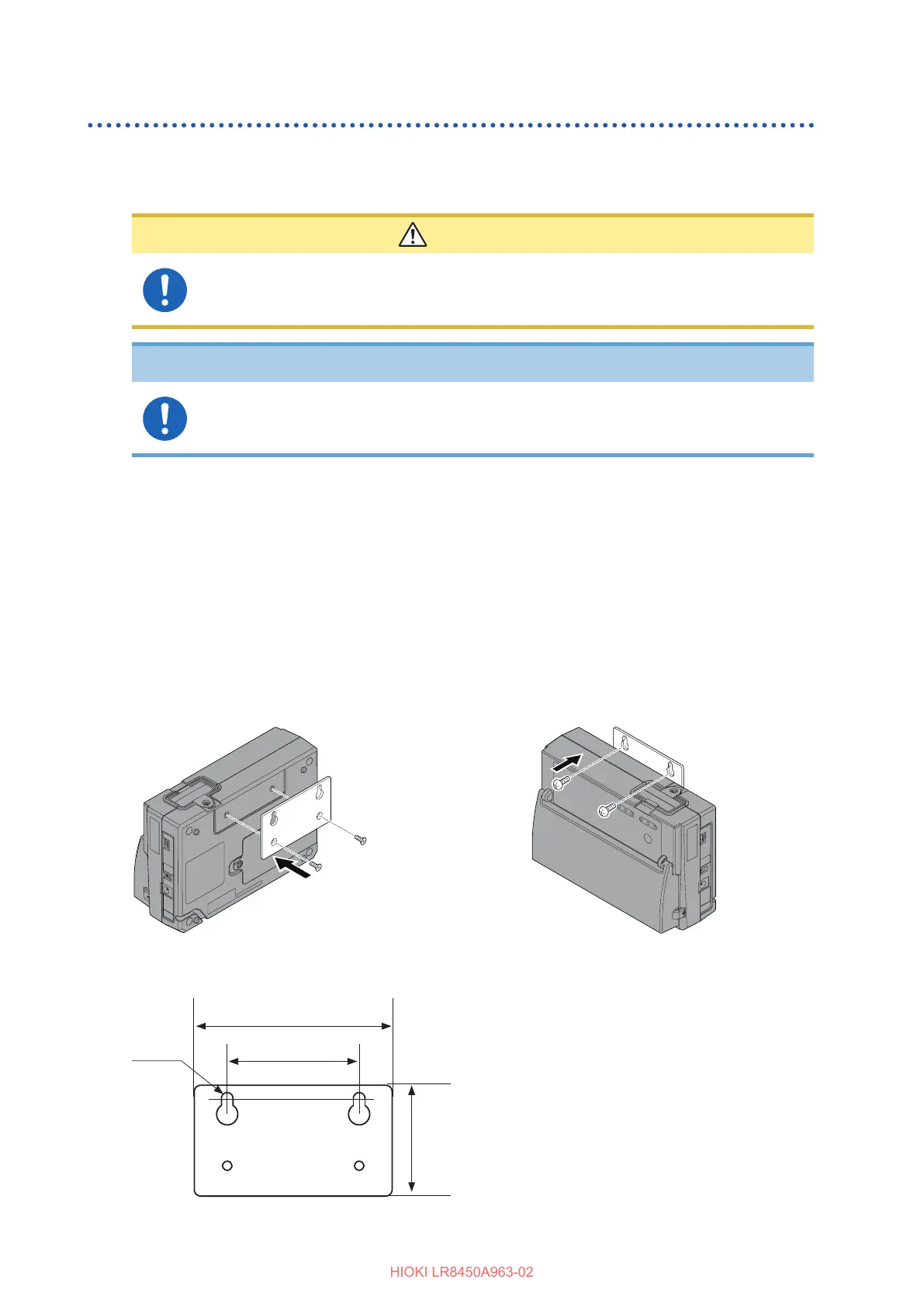

Preparing the Wireless Modules
Mounting the instrument on a wall or other surface
The mounting plate comes with the wireless modules.
You can anchor the wireless module, with the mounting plate attached, to a wall or another
installation.
CAUTION

Properly secure the mounting plate on a solid wall or other planes.
Failure to do so can cause the wireless module to fall, causing an accident that results
in injury or death or damage to the wireless module.
NOTICE

Use the M3×4 mm at-head screws only.
Using other screws can damage the wireless module or cause the wireless module to
detach from the mounting plate.
You will need: the mounting plate (comes with wireless modules), at-head screws (M3×4 mm)
×2 (comes with wireless modules), mounting screws (M4×8 mm or longer) ×2 (You
need to prepare separately.), and a Phillip’s head screwdriver (No.2)
1
Secure the mounting plate onto the rear of the wireless module with two at-head screws
(M3×4 mm, accessory).
2
Secure the mounting plate on a wall with two M4 screws.
No mounting screws come with the wireless module. Please use commercially available screws.
Recommended screws: M4×8 mm or longer
FrontRear
Mounting plate
1 2
Wireless module
M3 at-head screws
×2
M4 screws
×2
Dimensions of the mounting plate
2-R2.2
75 mm
50 mm
42 mm
HIOKI LR8450A963-02
