DIGI*TRAC Annunciator User’s Guide
6
b. Connect an extension cable from the Keypad port on the DTA’s
MATCH2 board to the keypad.
If you are connecting a reader to the Annunciator:
a. Relocate the connector from Reader Port 1 on the MATCH2 to
Reader Port 2.
This is only used as a power source for the DTA.
b. Connect the Reader to Reader Port 1 on the DTA’s MATCH2
board as shown in the example in Figure 7.

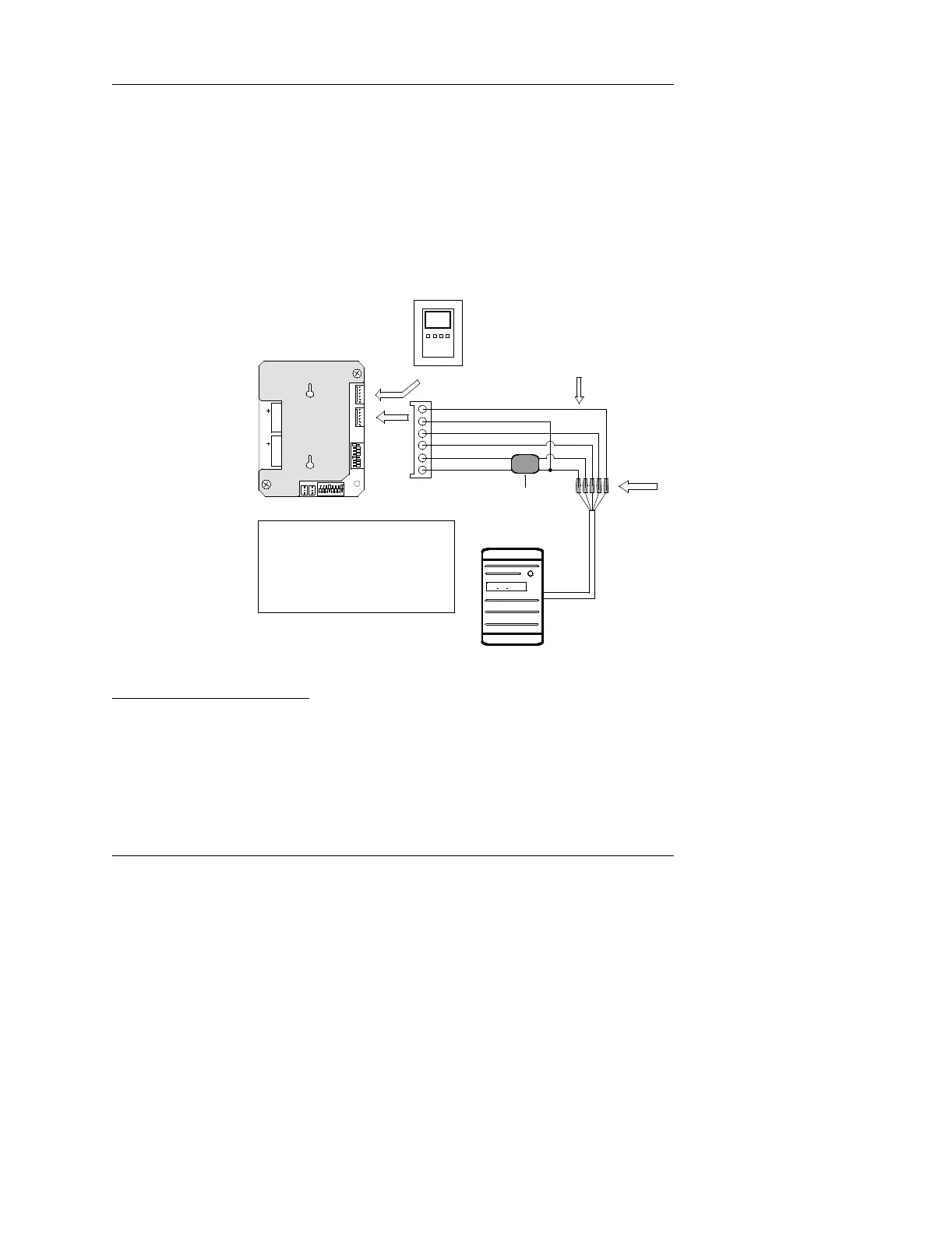

Figure 7: Connecting Reader to the DTA
This picture shows a specific type of proximity reader
(CR20L) which is also used in the DS47L-SPX. Your
reader and wiring specifications may differ from this
example.
Connecting a
Reader
1) MATCH switch settings: use the settings appropriate
to your specific reader or keypad
2) Maximum cable length depends on reader
specified
3) Reader Port 2 is reserved for the Annunciator connection.
NOTES
Annunciator
This is wired directly into
Reader Port 2
Reader
Port 1
Reader
Port 2
Back of Annunciator
12345678
12345678
G
A
B
S
D*TRAC
G
A
B
S
KEYPADS
P1P2
12
026-0000025 C MATCH
ON
ON
1 DATA1 WHITE
2 STRAP BLACK/WHITE STRIPE or BLUE
3 DATA 0 GREEN
4 LED ORANGE
5 +5V RED
6 GND BLACK
SOLDER &
HEAT SHRINK
ALL SPLICES
HID
CR20L-125-6005
(HID# 6005)
ProxPoint
max. 75 feet (22m) at 22 AWG.
NOTE: Special power filter is required
and can be purchased separately
from Hirsch (part # HPF). This
modificati on i s factory-provided
when the CR20L-125-6005 ProxPoint
reader is ordered.
This represents only
one possible reader
and wiring plan
To Next Page
