DIGI*TRAC Annunciator User’s Guide
16

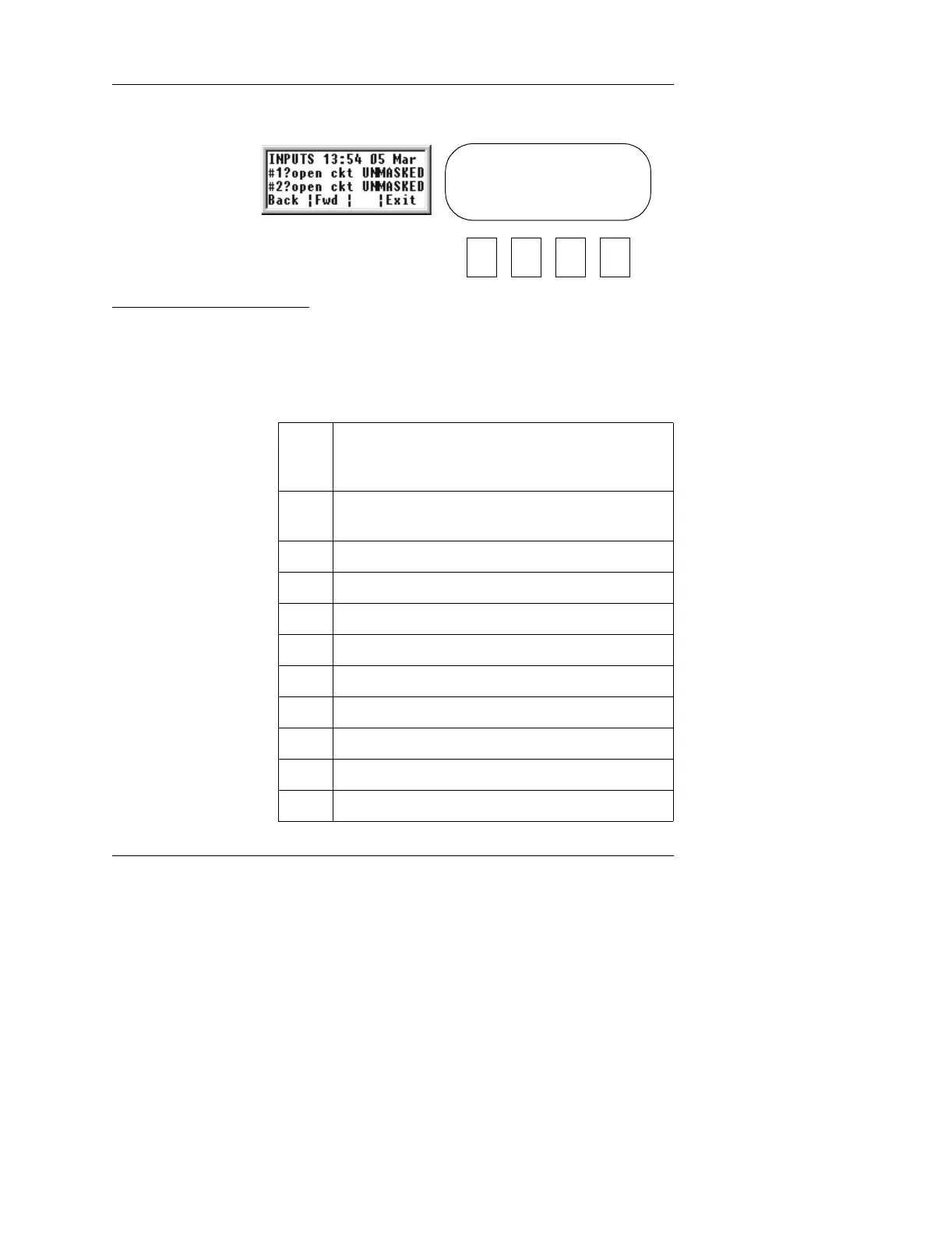

● If you press INP STAT, a screen like Figure 15 appears:
Figure 15: Input Status Menu
This screen displays the current Alarm Input or Expansion
Alarm Input status. The report is time stamped at the time the
button is pushed. A list of abbreviations you will find on this
screen are shown in the following table:
? A line fault of some sort, followed by a brief
explanation; in the preceding case, it indicates an
open circuit (‘open ckt’).
* Designates an input or expansion input is
currently in alarm (even if masked).
AL Alarm contact is unmasked.
.. Alarm Contact is secure.
RQ RQE contact is active.
TP Tamper contact is active.
M Masked by one of the following devices:
Tz Masked by Time Zone.
C Masked by Control Zone.
Ul Masked by Unlock.
X Masked by Entry/Exit Delay timer.
BACK FWD EXIT
To Next Page
