DIGI*TRAC Annunciator User’s Guide
4
A more complex example is shown in Figure 5:

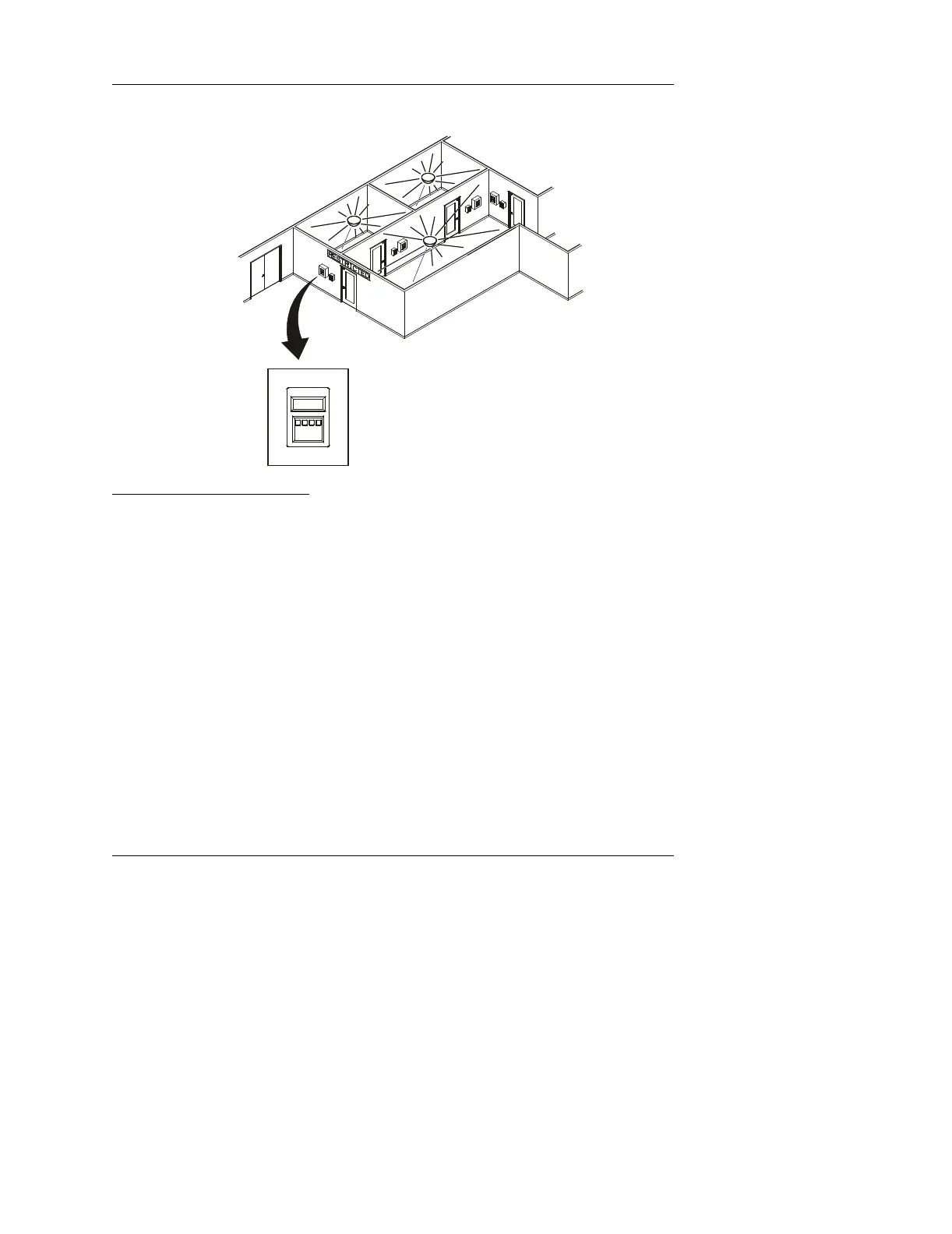

Figure 5: Annunciator Example
This example represents the way in which an annunciator can be
used to monitor activity within a given area—in this case, three rooms
incorporating readers, keypads, relays, motion detectors, amongst
other devices—and supply alarm and event information specific to the
entry and exit of personnel to/from that area.
The required components include:
● DIGI*TRAC Controller
● Annunciator
● Keypad or Card Reader
Most of the installation and configuration requirements for the
Annunciator are identical to those you would observe for the MATCH2
board (refer to “MATCH Interface Installation” on page 7-76 in the
DIGI*TRAC Design and Installation Guide for more details).
