Hirschmann BAT867-R - 10;100;1000 Mbit;S Twisted Pair Port; Pin Assignments

Installation BAT867-R
Release 06 08/2018
19
1.5 10/100/1000 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T standard.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The port casing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

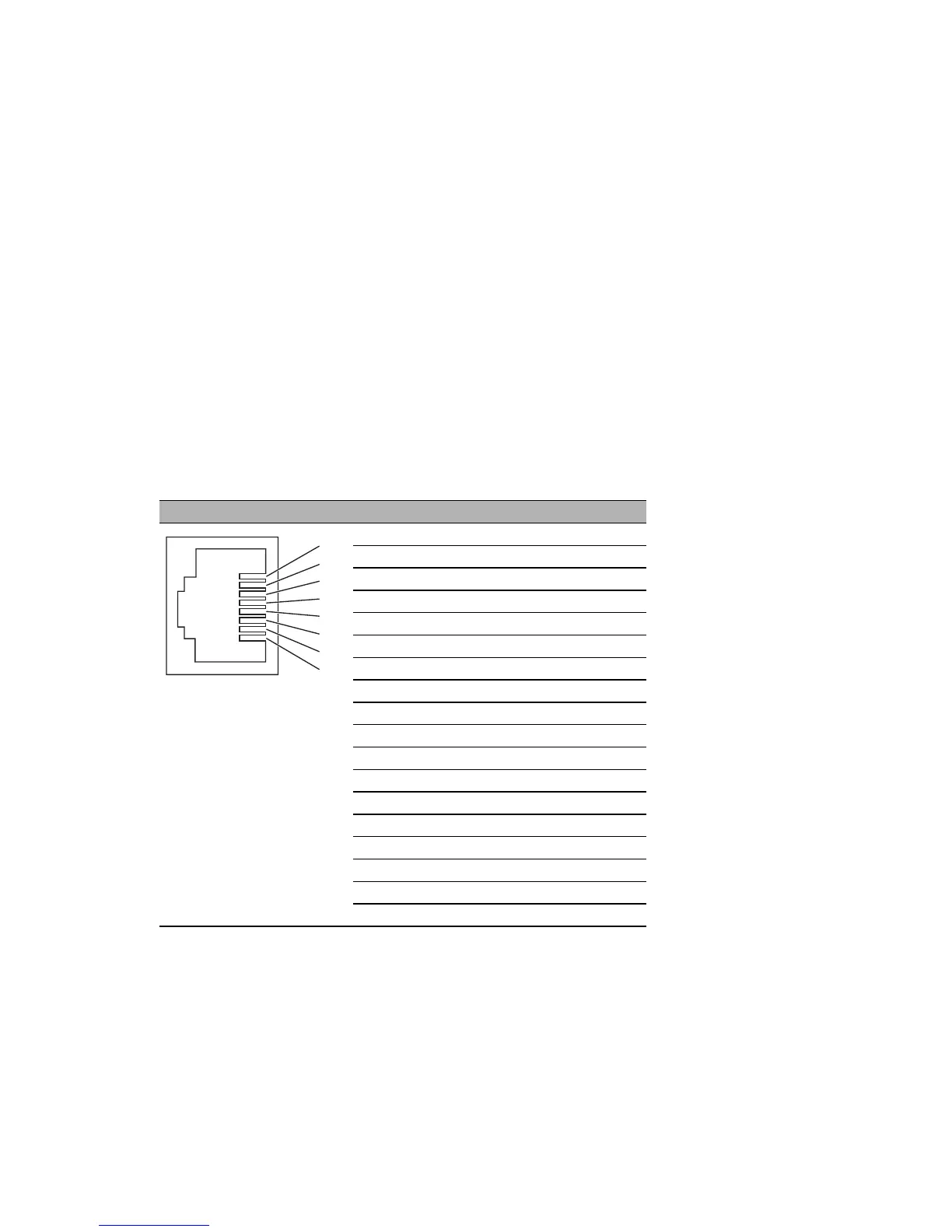

1.5.1 Pin assignments
RJ45 Pin 10/100 Mbit/s 1000 Mbit/s
MDI mode
1 TX+ BI_DA+
2TX BI_DA
3 RX+ BI_DB+
4— BI_DC+
5— BI_DC
6RX BI_DB
7— BI_DD+
8— BI_DD
MDI-X mode
1 RX+ BI_DB+
2RX BI_DB
3 TX+ BI_DA+
4— BI_DD+
5— BI_DD
6TX BI_DA
7— BI_DC+
8— BI_DC
1
2
3
4
5
6
7
8
