Hirschmann GRS103-22TX/4C-2HV-2A User Manual

Installation GRS103
Release 01 03/2022
47

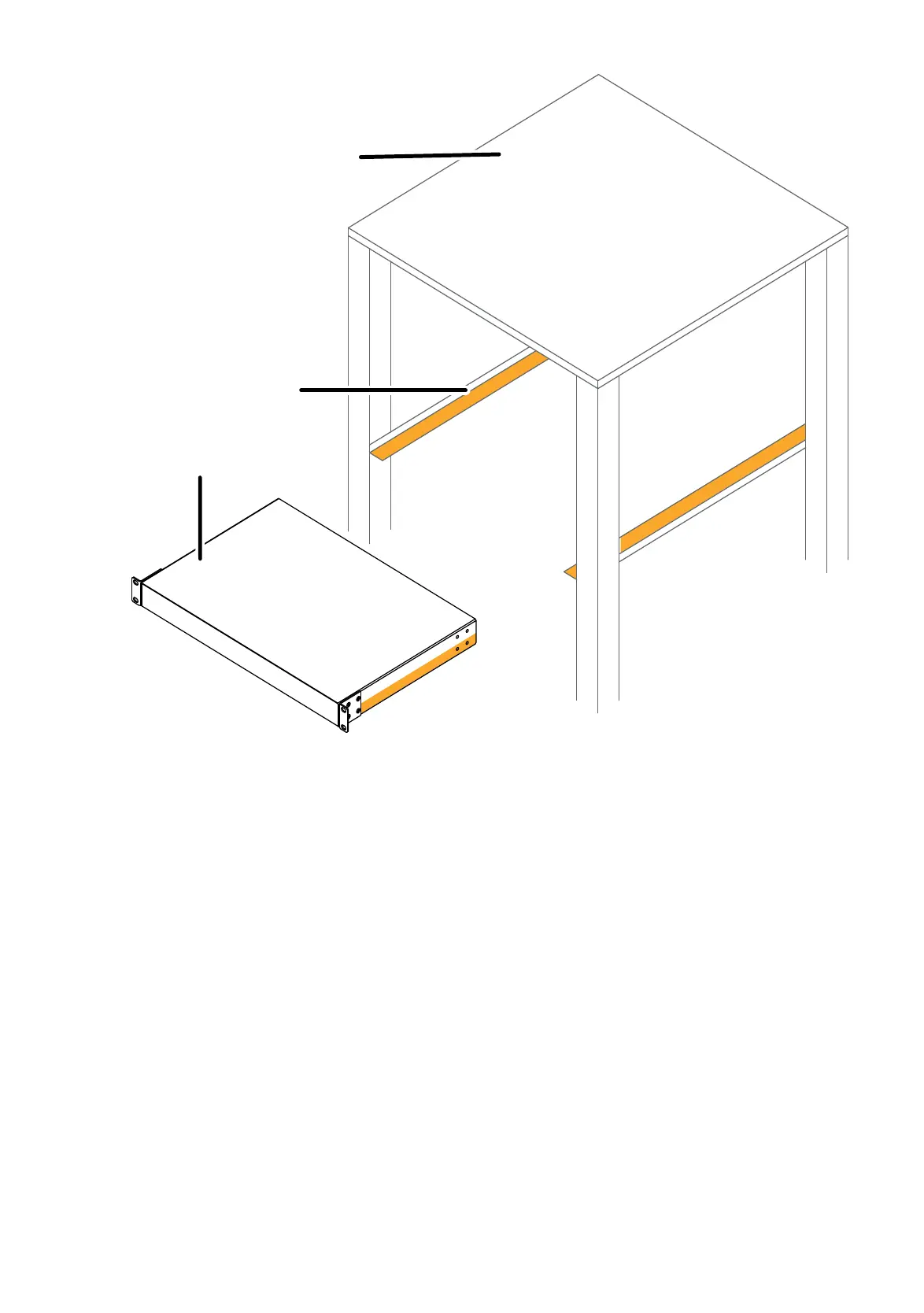

Figure 22: Assembly in a switch cabinet with sliding/mounting rails
1 - device
2 - sliding/mounting rail
3 - 19" switch cabinet
Perform the following work steps:
 Assemble the sliding or mounting rails in the 19" switch cabinet as
specified by the manufacturer.
 Position the device on the rails in the switch cabinet.
 Fasten the device in the switch cabinet by screwing it in with the mounting
brackets.
1
3
2
