5.1.3 Boom Angle Limitation
Programmable function for the limitation of the upper and/or lower boom angle.

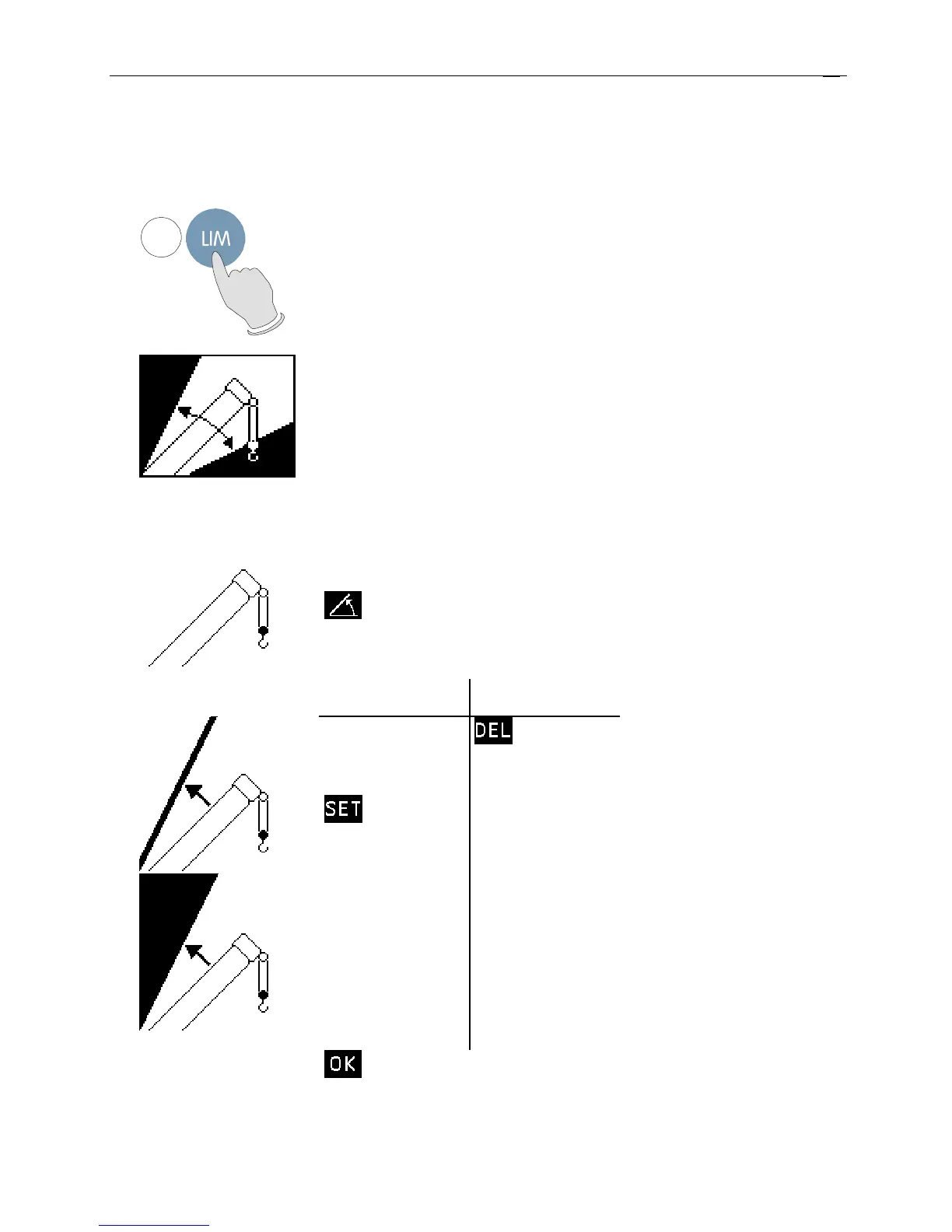

• Call function:
8
Call LIMIT Setting.
Enter the corresponding figure to call
function "boom angle limitation".
• set / delete upper limit value:
Select limit:
selection upper boom angle
limit
set: delete:
Luff up the boom
the requested
limit value.
set present
boom angle as
upper limit
delete
upper angle limit
Display shows
symbol with value
of the upper angle
limit
Display shows
symbol without
value of the upper
angle limit
quit
function
