5.1.4 Radius Limitation
Programmable function for the limitation of the minimum and/or maximum working radius.

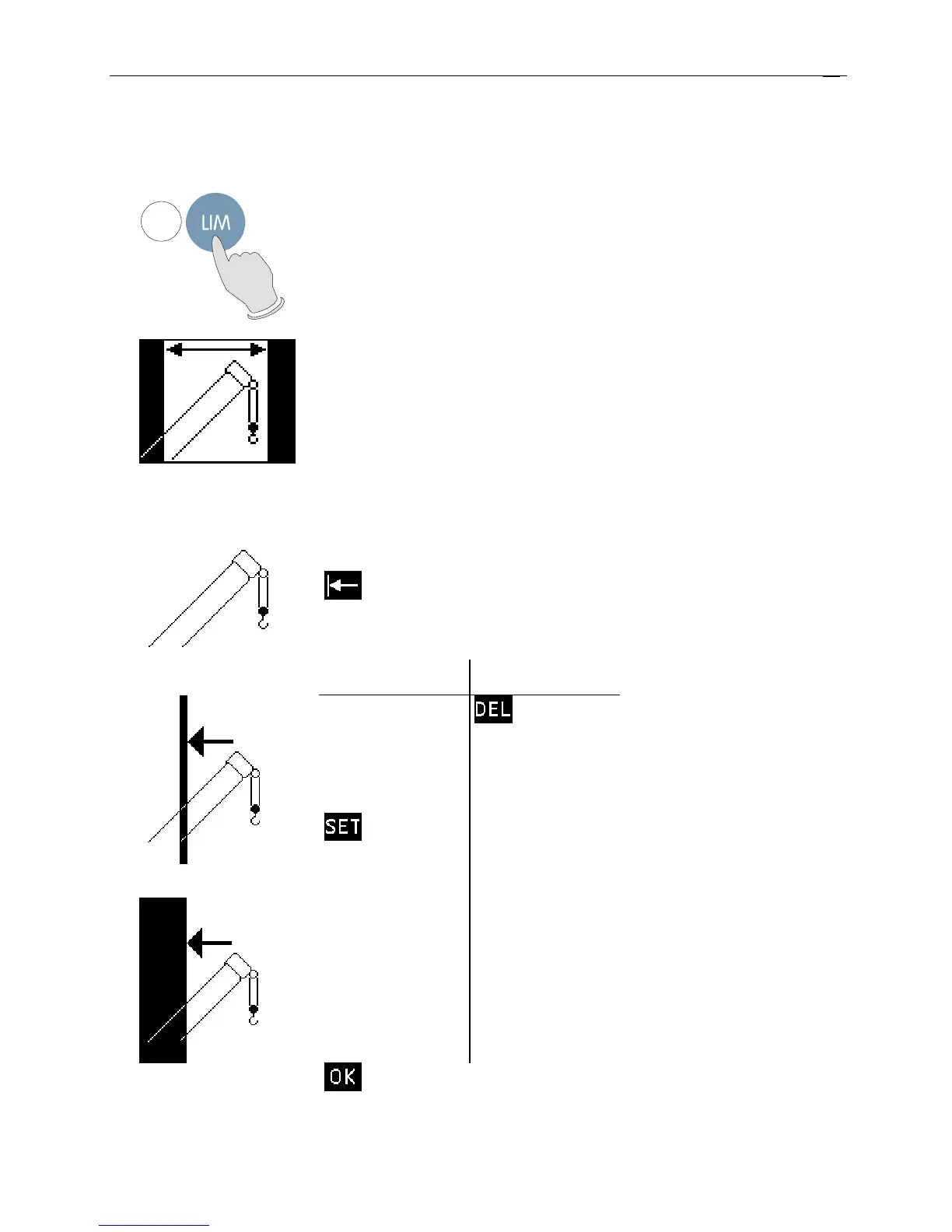

• Call function:
8
Call LIMIT Setting
Select the corresponding figure to call
the function "radius limitation".
• set / delete minimum radius:
Select limits:
select minimum radius limit
set: delete:
position boom at
the required
minimum radius
value.
set present
boom radius as
minimum radius
delete
minimum radius
limit
display shows
symbol with
radius value of
minimum limit
display shows
symbol without
value of minimum
radius
quit
function
