Operator's Manual iFLEX5
© Hirschmann Rev. E 11/12/08 190147_E
4

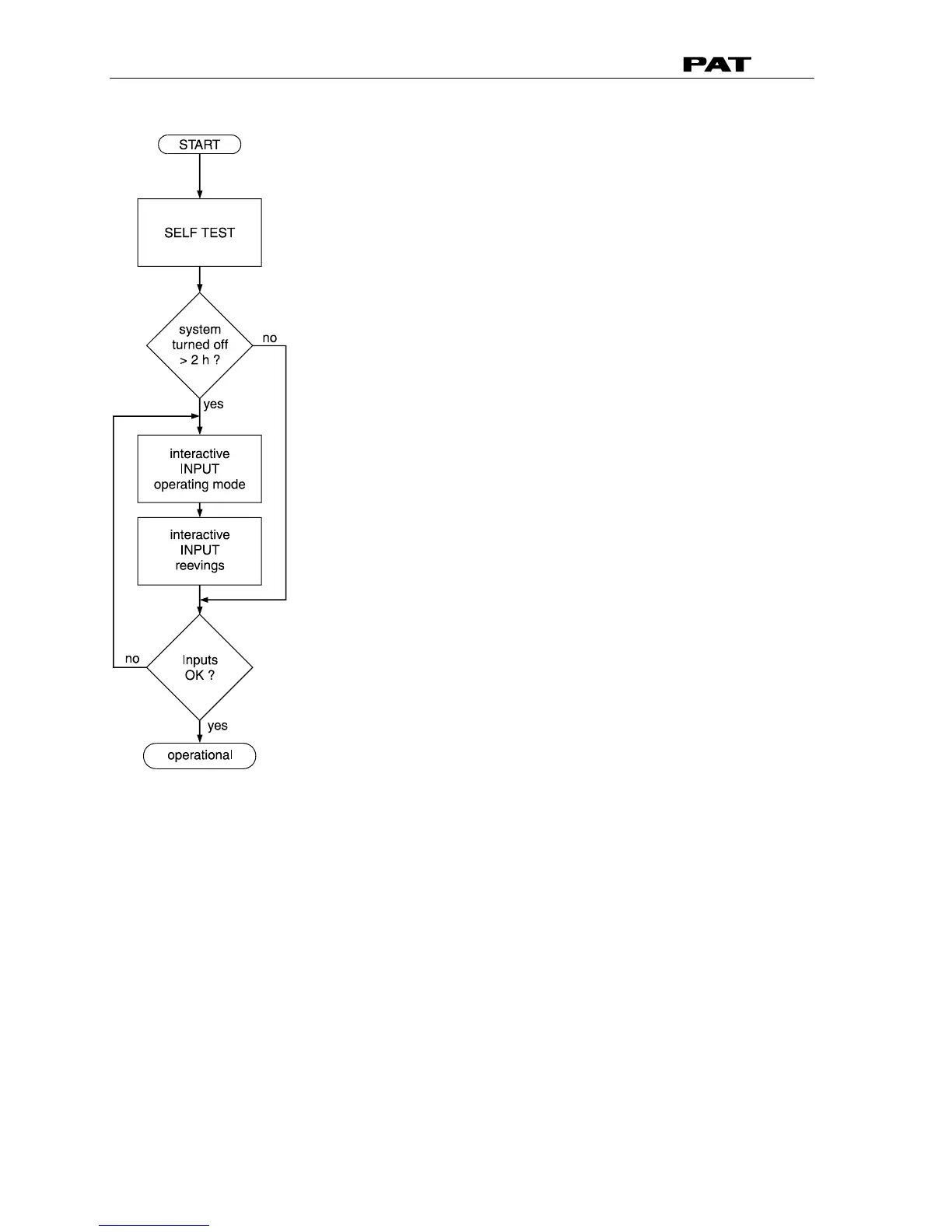

3.1 SYSTEM FUNCTION
Upon switching on, the system starts with an
automatic test of the LMI system, of lamps
and audible alarm. During the test, the LC
display shows the initial logo.
If the system was turned off for more than
two hours, the setup configuration has to be
entered after the system test. (⇒ chapter 4)
First, the operating mode is determined by
an interactive step-by-step interrogation of
the rigging states.
Next is the interactive input of the reeving.
Now the LC display shows in symbols all
inputs and awaits acknowledgment or
canceling.
Upon acknowledgment of the inputs the
system is ready for operation.
