Hirschmann iFLEX5 - Page 9

System Description
© Hirschmann Rev. E 11/12/08 190147_E
3

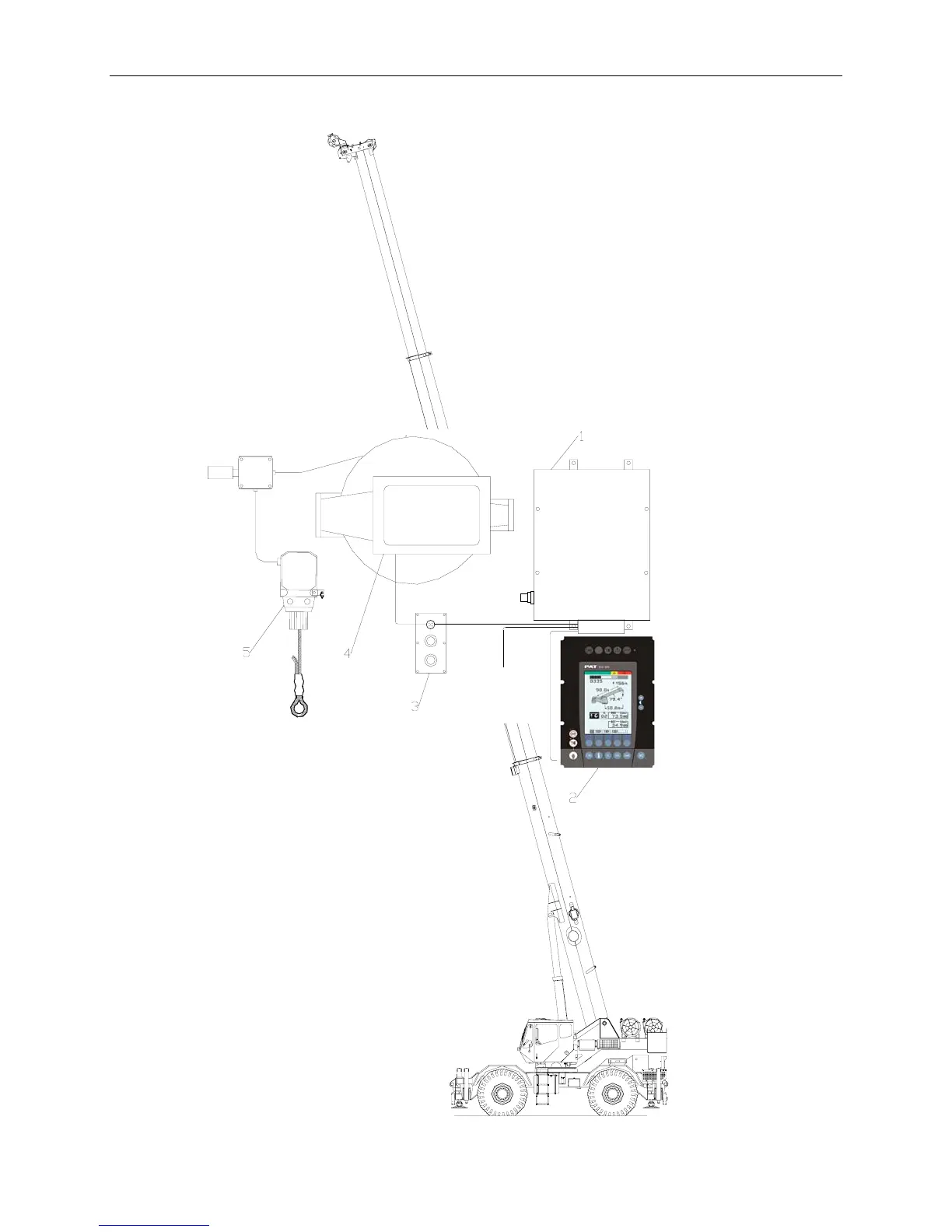

Fig. 1: Components of the LMI system PAT iFLEX5
1 Central-Micro-Processor Unit
2 Operating Console
3 Pressure Transducers
4 Length/Angle Sensor
5 Anti Two-Block Switch(es)
POWER
LOCKOUT
OTHER
PAT
