19

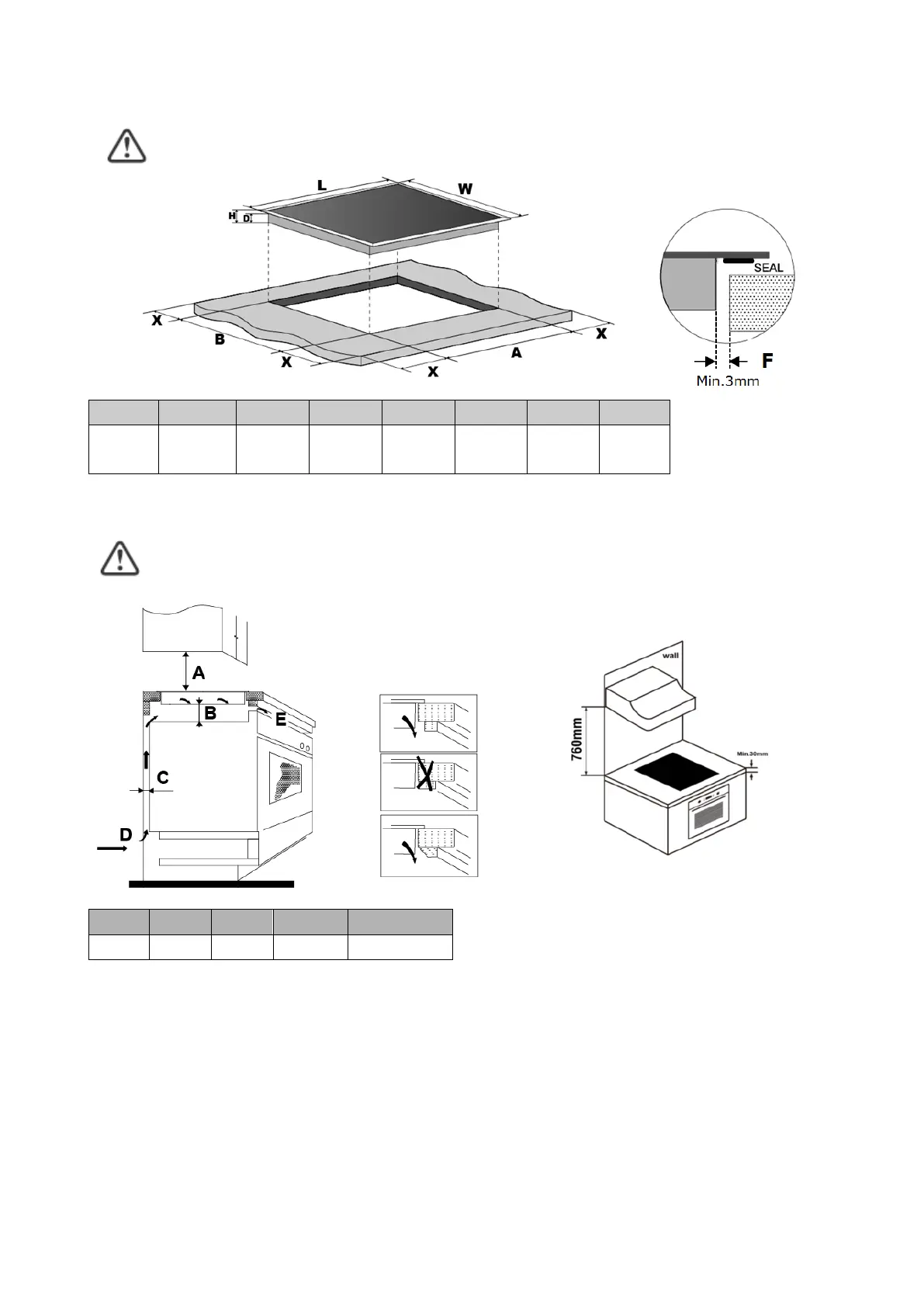

radiation from the hotplate. As shown below:
Note: The safety distance between the sides of the hob and the inner surfaces of the worktop
should be at least 3mm.
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm)
590 520 55 51 560+4
+1
490+4
+1
50 mini 3 mini
Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760mm.
WARNING: Ensuring
Adequate Ventilation
Make sure the ceramic hob is well ventilated and that air inlet and outlet are not
blocked.
In order to
avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock
during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of
50mm from the bottom of the hob. Follow the requirements below.
A(mm) B(mm) C(mm) D E
760 50 mini 20 mini Air intake Air exit 5mm
